Miller Electric Mfg. LLCJetline® Side Beam Tracks and Carriages

Jetline® Side Beam Tracks and Carriages

Miller Electric Mfg. LLC

Categories:
Gantry & Linear Handling Systems
Equipment main view

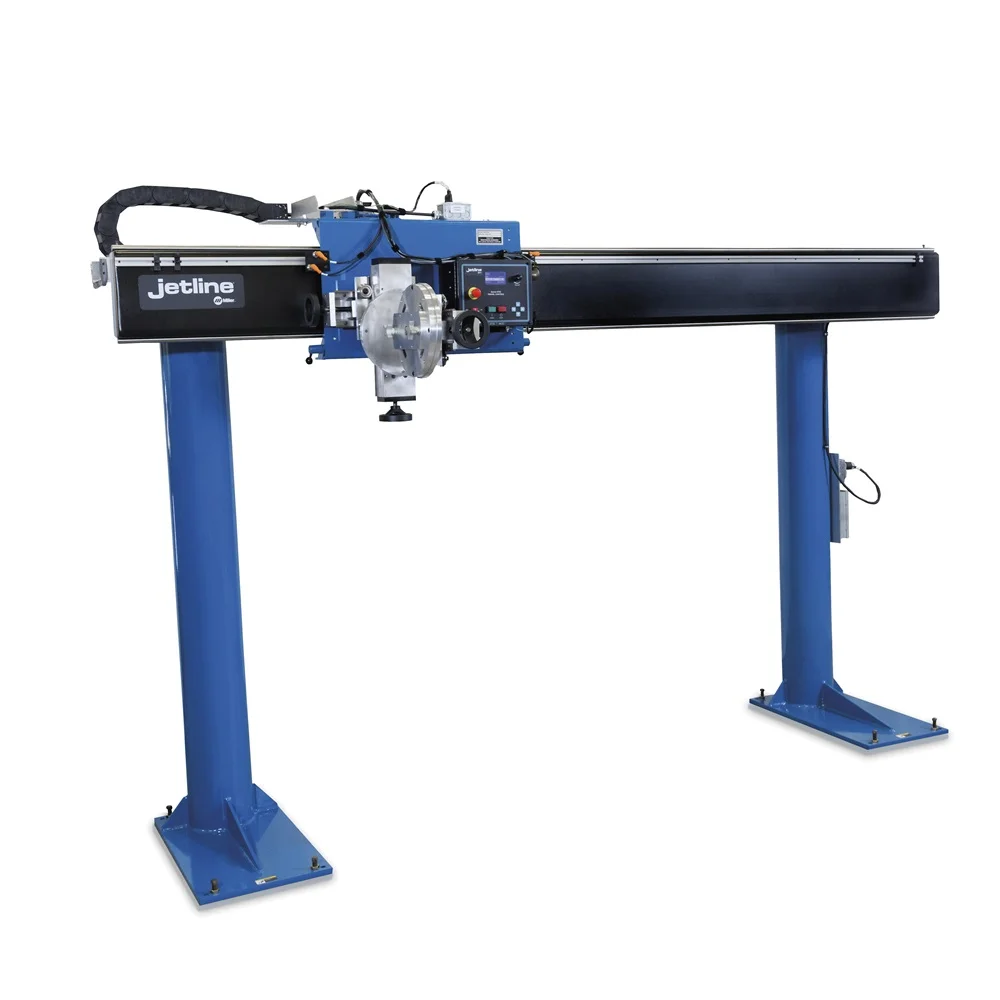

Equipment view 2
Equipment view 3
Equipment view 4

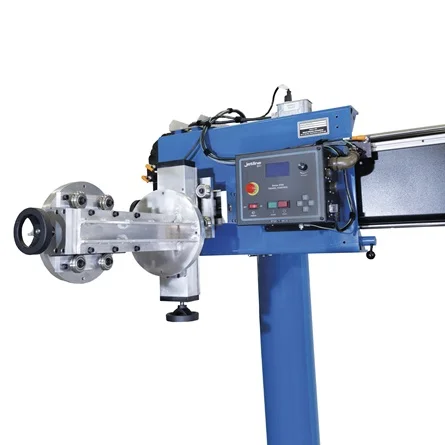

Equipment view 5

Model Overview

Jetline® Side Beam Tracks and Carriages are used for positioning the weld head over the weldment and for linear welds and consist of three elements: track, carriage and support posts. TKSA standard duty side beam track is a very rigid structural section with case-hardened tool steel roundaways moun...

Technical Specifications

TitleJetline® Side Beam Tracks and Carriages
ProcessesMIG (GMAW); Plasma Arc Welding (PAW); TIG (GTAW); Submerged Arc (SAW)
Tkl Weight Capacity300 lbs. at 12 in. from the mounting face.
Tkhv Weight Capacity1,000 lbs. at 12 in. from the mounting face.
Tkmv Weight Capacity1,000 lbs. at 4 in. from the mounting face.
