HFS 4080 F Advance

Overview

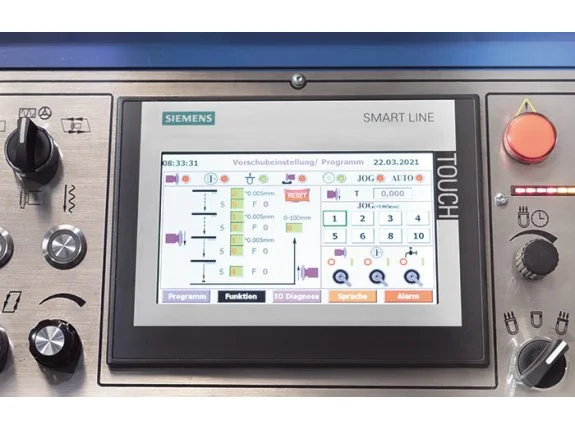

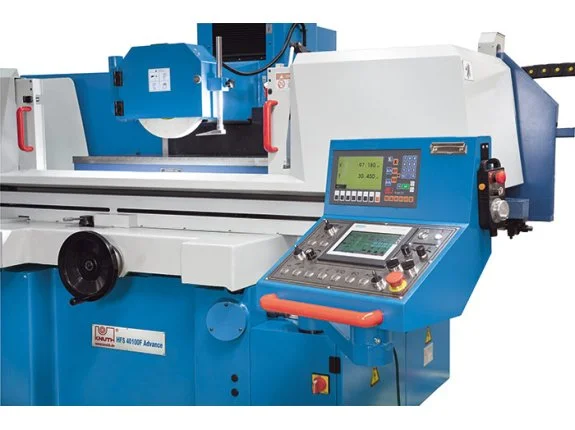

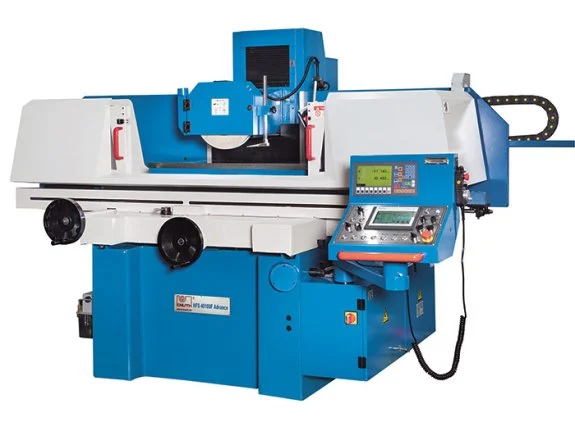

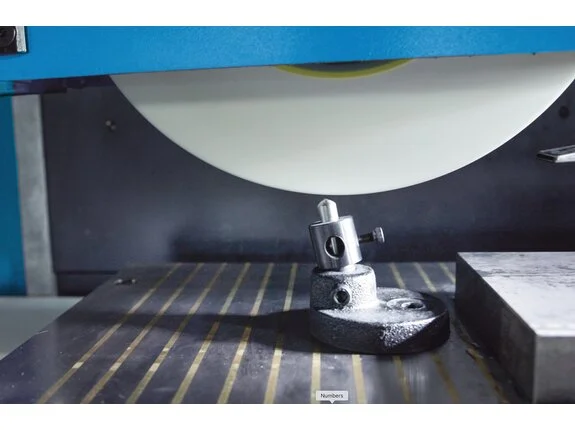

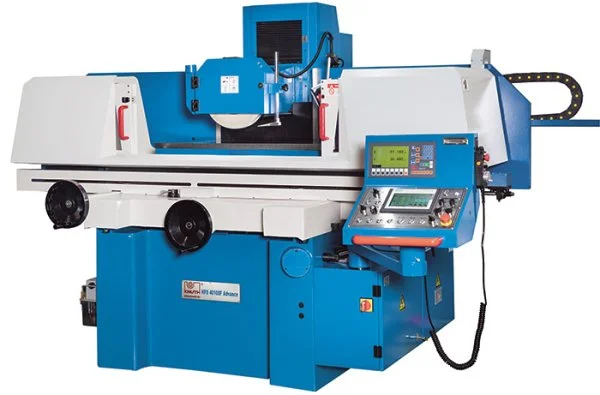

HFS 4080 F Advance (SKU: 124933) is a conventional surface grinder in the HFS F Advanced series that includes advanced operating functions implemented with Siemens technology and an extensive standard equipment package as a turnkey solution. The machine includes a magnetic clamping plate with built-in demagnetizing function and a vertical axis driven by a ballscrew and servo motor for high precision. The cast-iron machine frame provides rigidity and torsional strength, and all guideways are lubricated via a central lubrication system with the workspace protected by an easily accessible enclosure. A powerful coolant pump is combined with a vacuum exhaust unit to clear grinding dust and aerosol, and the grinding spindle is dynamically balanced, completely sealed with permanent lubrication and fitted with preloaded precision bearings. Control and motion features include Siemens PLC with touchscreen for entering and editing grinding spindle feed parameters, a high-quality preloaded ball screw and powerful servo-motor for positioning repeatability on the Y-axis, and an electronic hand-wheel for configuration tasks and manual spindle movement. Hydraulics are provided by an external hydraulics unit with oil cooler offering hydraulically operated linear table movement that is infinitely variable with soft reversal of direction and quiet, low-heat operation. The magnetic clamping plate control unit is integrated into the electric system to allow clamping and degaussing operations. Key specifications: - Workpiece weight (max.): 1100 lbs - Table dimensions: 32 in x 16 in - Spindle nose-to-table surface distance: 23 in - Dimensions magnetic clamping plate: 31 in x 16 in - Scale ring division Y-axis: 0.0002 in - Scale ring division Z-axis: 0.00079 in - Auto. transverse feed Z-axis: 0 in - 0.31 in - Speed: 1450 rpm - Auto. vertical feed: 0.0002 in - 0.00197 in - Travel X-axis: 35.8 in - Travel Y-axis: 18 in - Hydr. feed X-axis: 22.89 fpm - 75.21 fpm - Rapid feed Y-axis: 19 in/min - Rapid feed Z-axis: 39 in/min - Motor rating main drive: 5.4 Hp - Grinding wheel dimensions: 13.78 in x 1.57 in x 5 in - Overall dimensions (length x width x height): 142 in x 95 in x 75 in - Weight: 7480 lbs The HFS 4080 F Advance is a conventional surface grinding machine intended as a turnkey solution for surface grinding tasks. The product description explicitly positions it as "the best choice for customers for whom conventional is too little and CNC is too much." Its Siemens PLC and touchscreen with easy auto-mode programming process user-defined roughing and finishing parameters, number of spark-out strokes, and return-to-zero sequences, and the integrated magnetic clamping plate control enables quick clamping and degaussing for maximum production efficiency.
