Peltier System C912P

Overview

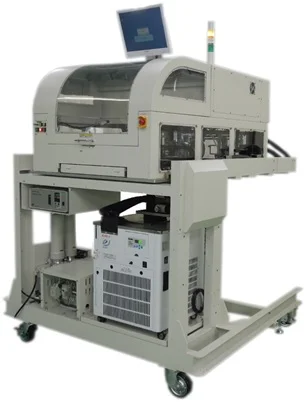

Peltier System C912P is a table-top handler with a Peltier thermal control system. The unit features an eco-friendly thermal control system that dissipates heat by Cooling water and uses eco-friendly non-freon operation. Temperature range is -40 deg.C to +150 deg.C (+/- 3 deg.C). The system includes laser alignment (No Rough guide is required), a transparent chamber for good visibility, an installed air dryer, and is described as easy to move. Applicable package information is listed as BGA etc.; package dimensions are 5X5～35X35 mm and the applicable socket is Clam-shell type. Binning is 2 single output trays, index is 10sec, throughput is 360 UPH, test site is 1CH, and contact force is 30Kg/DUT. Utility and physical specifications: power source AC200V·20A, air source 0.4Mpa (200L/min.), main body dimensions (W)780 x (D)1212 x (H)645 mm, and weight 230Kg (Frames included). The C912P is presented as a table-top handler for packages (including the listed package string and BGA etc.) that requires controlled temperature cycling from -40 deg.C to +150 deg.C (+/- 3 deg.C). It supports binning into 2 single output trays with an index of 10sec and a throughput of 360 UPH at a single test site (1CH) while applying 30Kg/DUT contact force. Thermal and handling features—heat dissipation by cooling water, eco-friendly non-freon operation, an air dryer, laser alignment, and a transparent chamber—support temperature-controlled handling and visible alignment during processing; the unit requires AC200V·20A power and 0.4Mpa air (200L/min.).
