D-NAMICStacking and Bagging

Overview

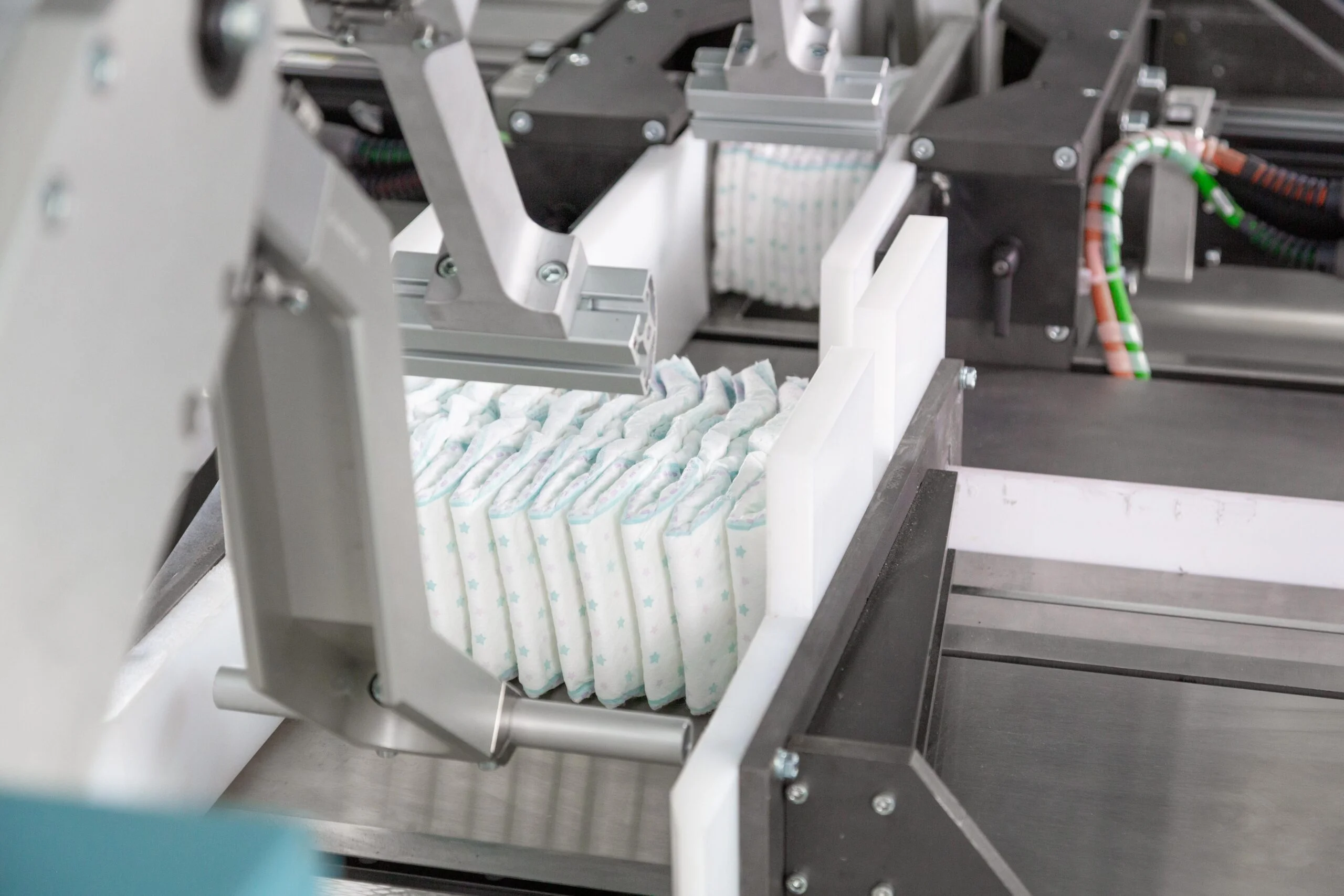

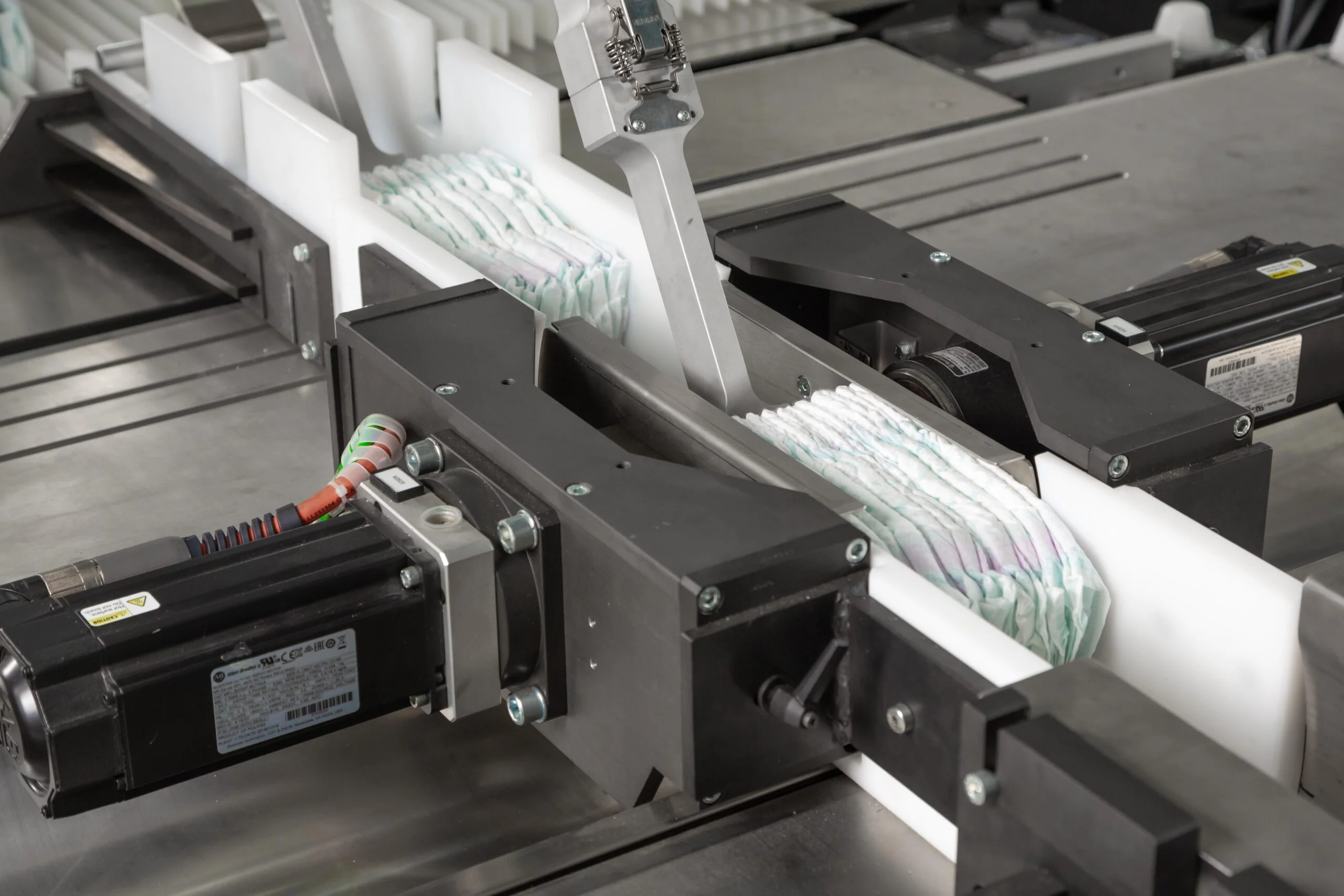

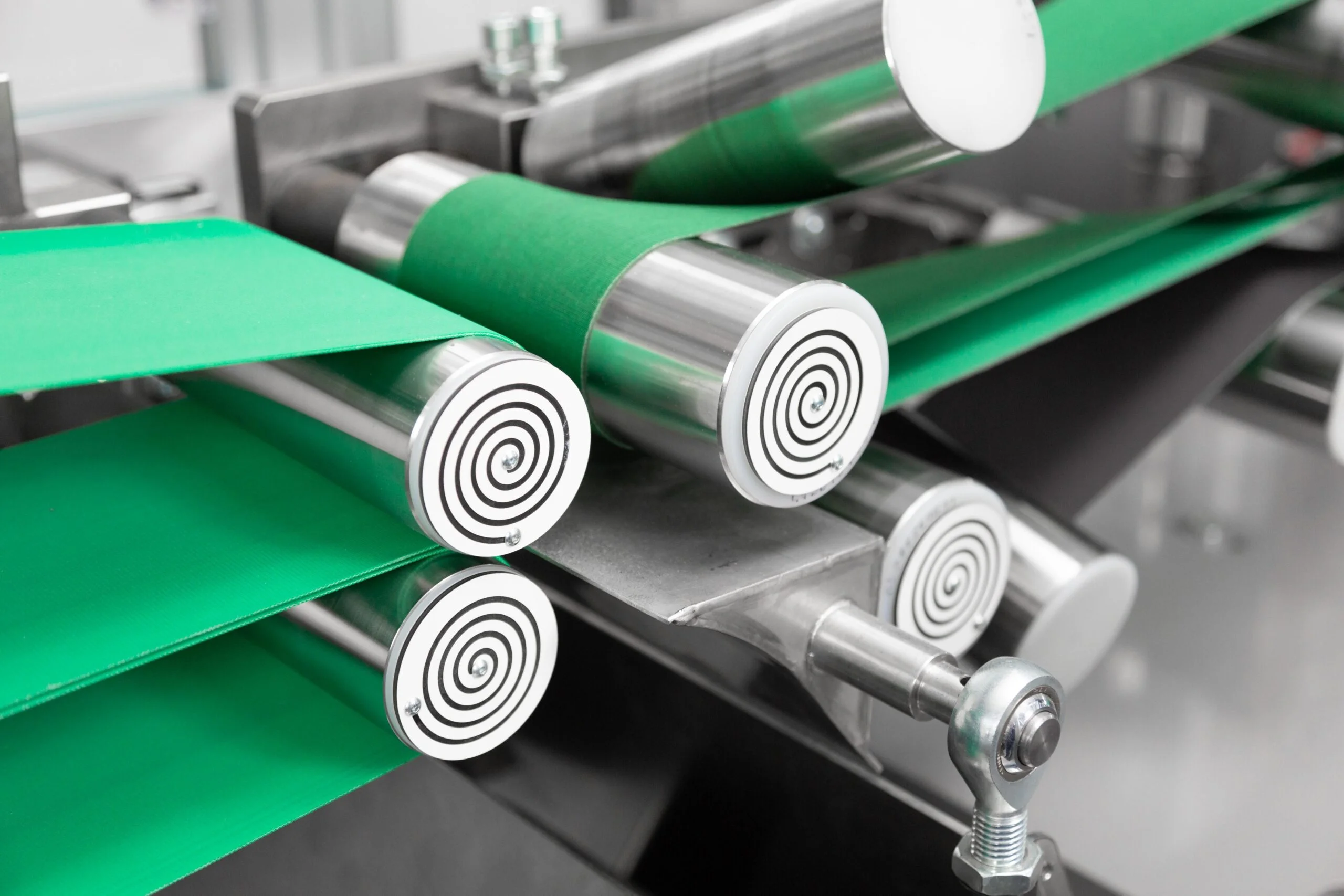

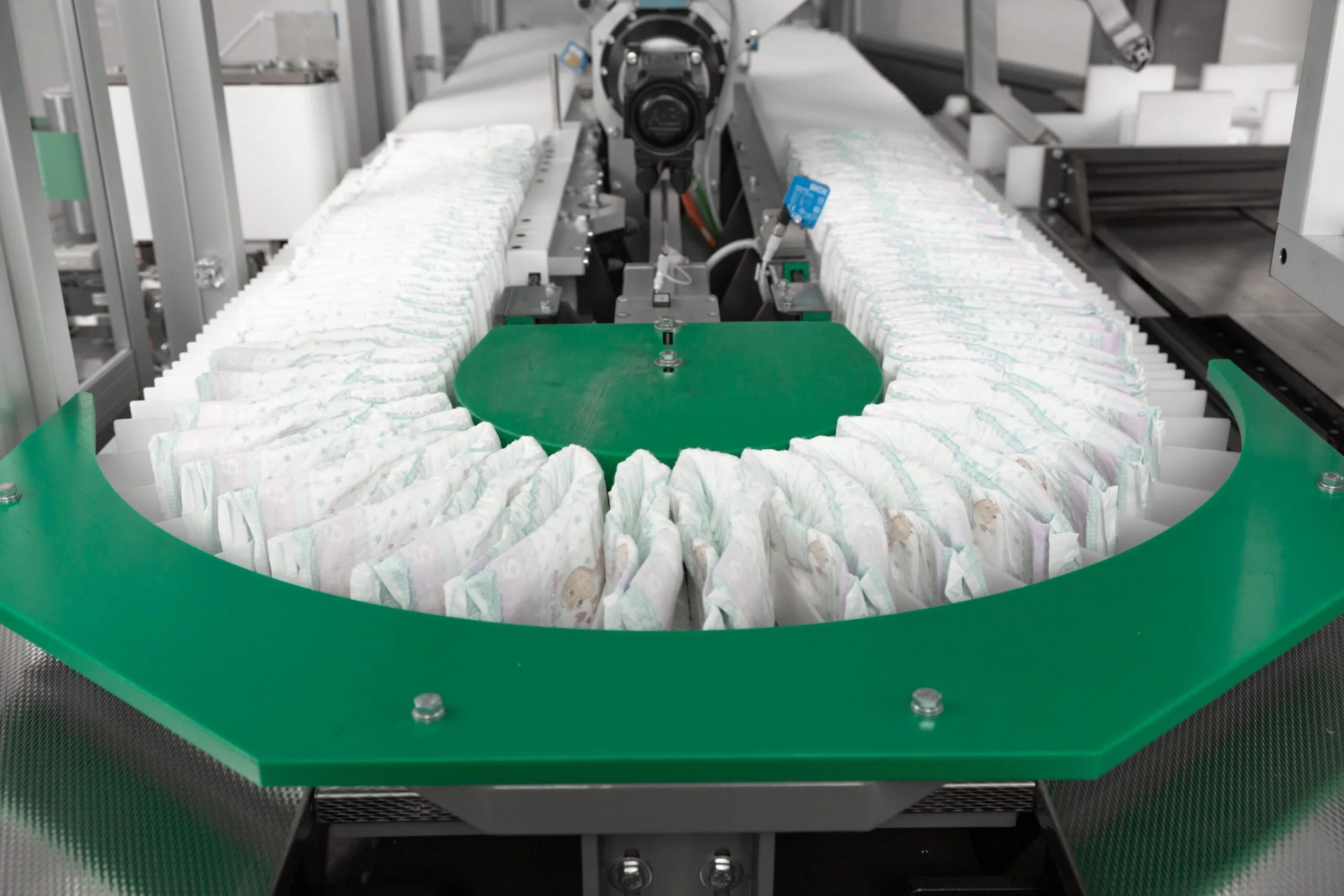

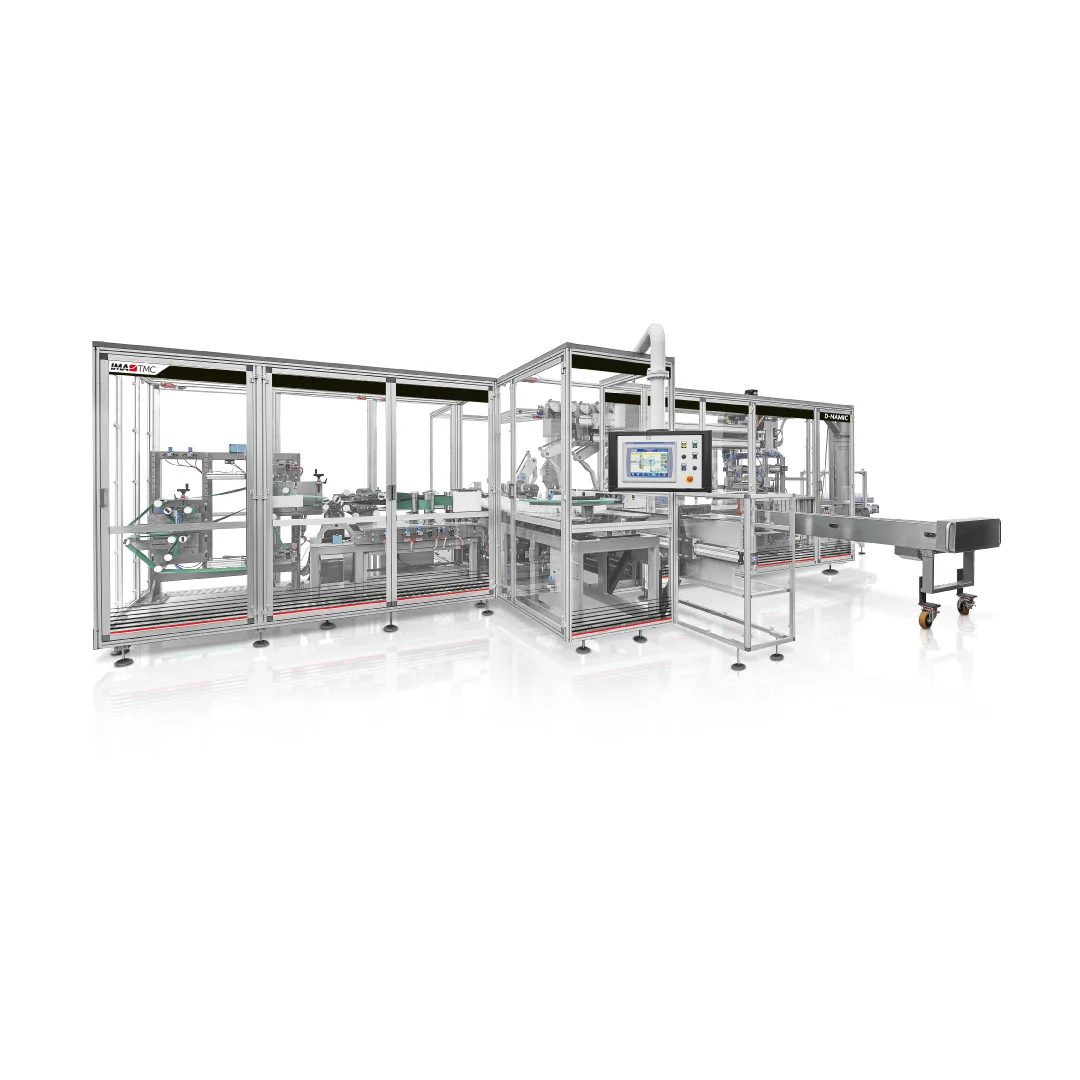

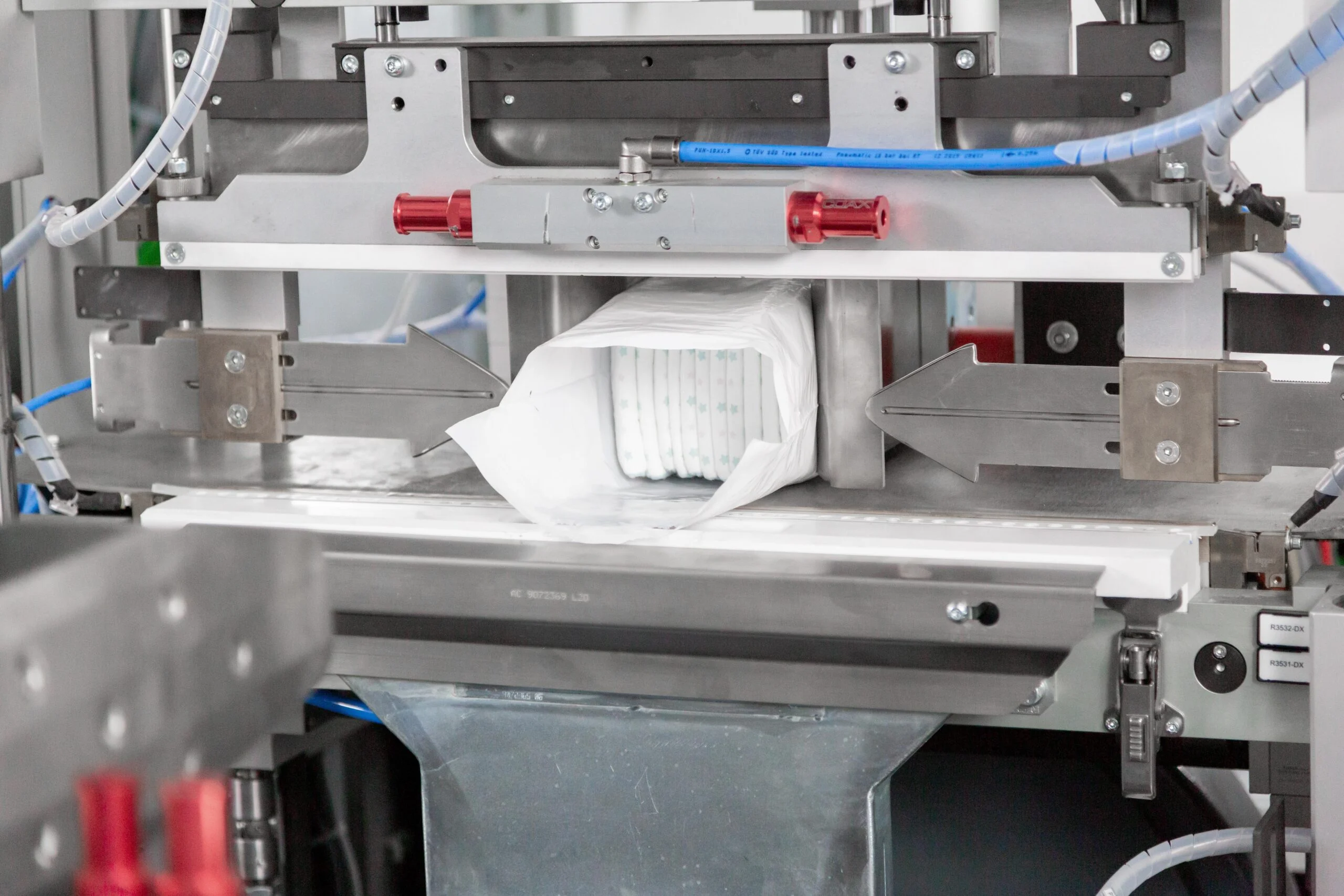

D-NAMIC is an All-In-One Stacker & Bagger and a primary packaging solution for baby and adults diapers in pre-formed bags. Performance specifications include: - Bag Speed (Speed): from 45 to 75 bags/min in single lane; up to 130 bags/min in dual lane. - Pad speed (Speed): from 400 to 1200 pads/min. - Mechanical speed (Speed): up to 80 cycles/min. Pad dimensions are provided as: Pad dimensions - Width Min.: 90 min (3,54”); Pad dimensions - Width Max: 200 mm (7,87’’); Pad dimensions - Length Min.: 160 mm (6,3’’); Pad dimensions - Length Max: 280 mm (11,02’’); Pad dimensions - Thickness Min.: 12 mm (0,42’’); Pad dimensions - Thickness Max: 35 mm (1,38’’). The machine features an interface belt with a product adjustable entrance and an automatic tensioning system, pitch and centering control in infeed phase allowing automatic servo driven discharge of products out of position, and height adjustment of product launchers to ensure accurate product positioning and easy changeover. The machine has a modular design and easy re-configuration, includes automatic changeover adjustments, was produced at Production plant: IMA TMC, and machine details reference a video (https://youtu.be/RWYASjQbR5U) and a layout image (https://imagroup.com/wp-content/uploads/2025/07/LAYOUT-DNAMIC.png). D-NAMIC is used for primary packaging of baby and adults diapers in pre-formed bags as an All-In-One stacker and bagger. It is specified to support in-line re-pack processes and a wide range of product configurations. The machine handles high-throughput operations with pad speeds from 400 to 1200 pads/min and bag speeds from 45 to 75 bags/min in single lane (up to 130 bags/min in dual lane), and provides automatic changeover adjustments to accommodate different product dimensions.
