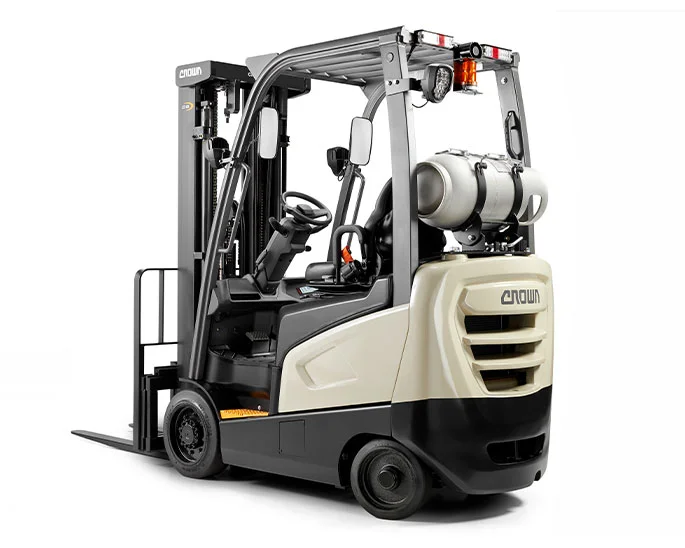

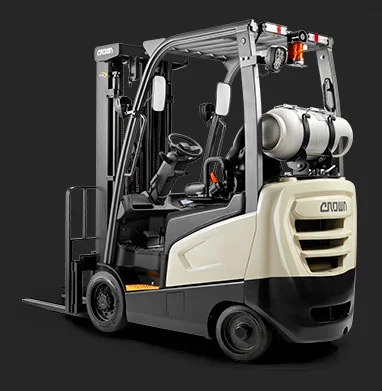

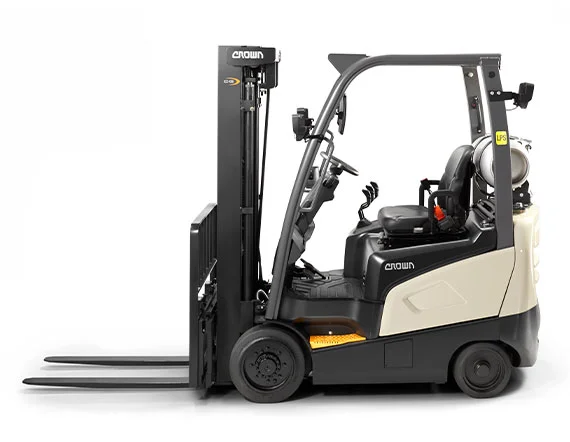

C-G Series Cushion Tire 3,000 - 4,000 lb Forklift

Overview

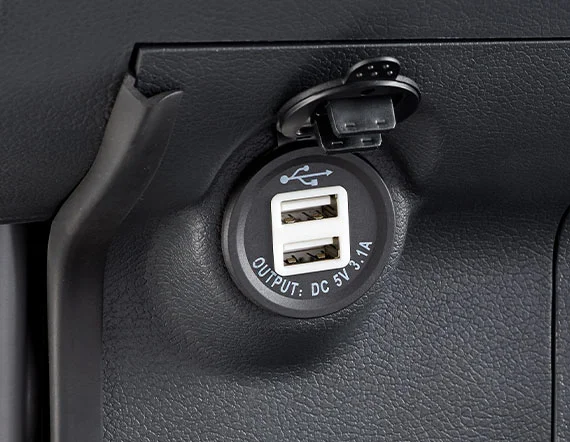

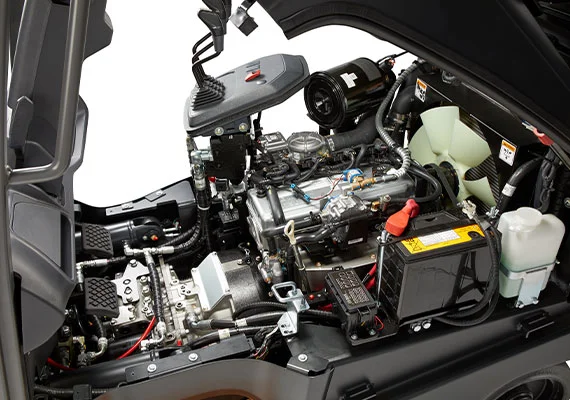

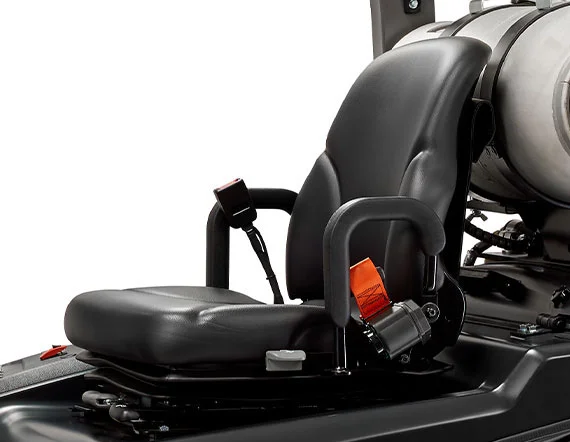

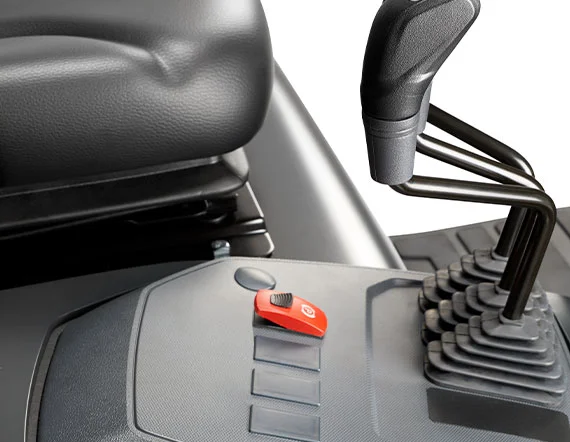

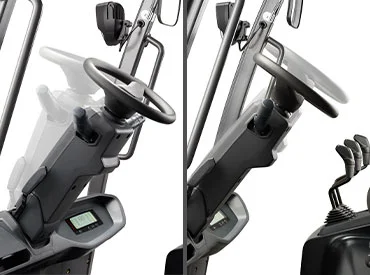

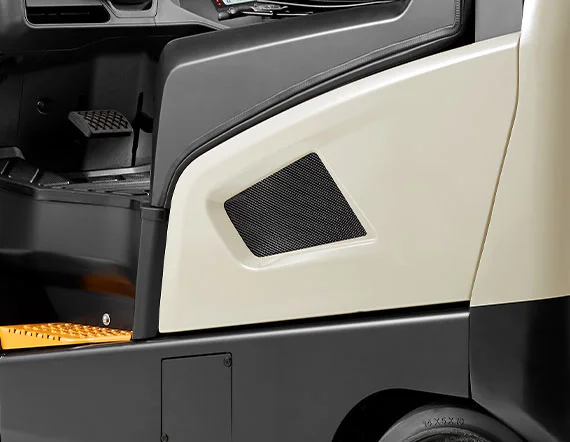

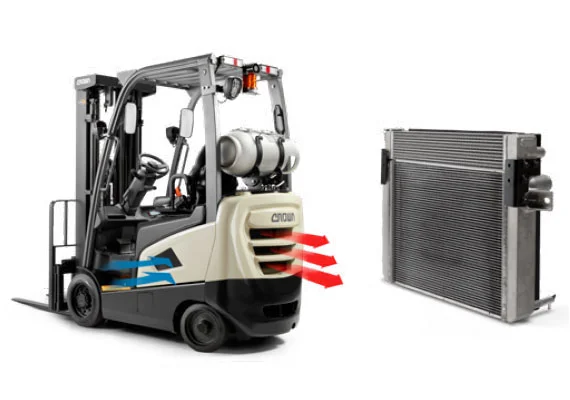

The C-G Series Cushion Tire 3,000 - 4,000 lb Forklift is an internal combustion, cushion tire forklift offered in CGC 15-20 LPG models. These are small-footprint trucks designed to combine power with maneuverability. - Load Capacity: 3,000 - 4,000 lb - Max. Lift Height: 236 in (TT) - Power (LPG): 51 HP @ 2,450 RPM - Width Overall: 37.0 in Long-life oil-cooled disc brakes are sealed from contamination and include a 5-year, 10,000-hour warranty. An optional heavy duty cooling package includes vented side panels and a dual-core radiator, and the truck features an easy-access oil filter and serviceable components supported by Crown's parts and service network. Operator-focused features include a pedal layout that enables pivoting from accelerator to brake without lifting the foot, an ergonomic low step height and grab handle, a tilt and telescopic steering column, an electronic parking brake operated by a rocker switch, a spring-adjustable suspension seat bottom with adjustable tilt seat back, a rear post handle with horn button, and two covered USB ports. The C-G Series is intended for use with loads up to 4,000 pounds in constrained floorspace and narrow, block-stacked warehouse aisles. CGC 15-20 LPG units are described as ideally suited for narrow aisles, block stacking applications and other space-constricted areas. A reduced head length and turn radius are provided to enable maneuvering in tight spaces and to allow block stacking of aisles tighter while maintaining access where larger lift trucks cannot fit. An optional heavy duty cooling package is offered to protect the powertrain against overheating in high-heat applications.
