Pebble Polishing Machine

Overview

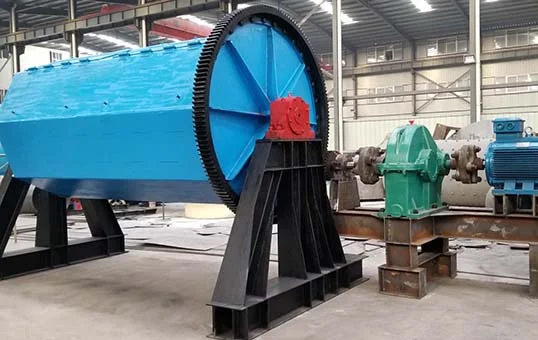

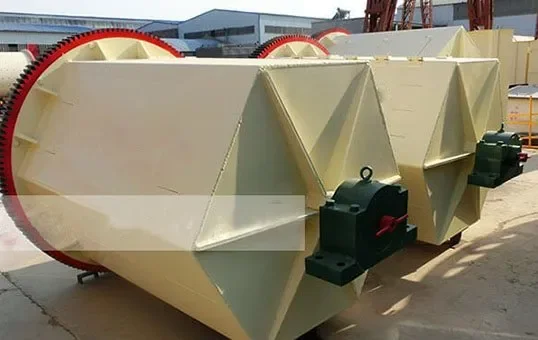

Pebble Polishing Machine by Inovatec Machinery polishes river, pebble, and granite stones with a polishing capacity ranging from two to 100 tons and a maximum stone size less than 150mm. The machine operates at speeds between 33 rpm and 56 rpm and an example motor listed is 22kW. The large-size unit features a huge hexagonal barrel and the finishing chambers include an added protective layer to increase machine lifespan. The machine supports wet or dry finishing, is described as easy to install and operate, and provides internal lifting tools for debris removal; porcelain balls are noted as optional polishing media when needed. • RB5K — Stone Loading Capacity (t): 5-6; Motor Power (KW): 11; Rotational Speed (RPM): 33～35; Barrel Size (mm): 1600*2100 • RB10K — Stone Loading Capacity (t): 9-10; Motor Power (KW): 15; Rotational Speed (RPM): 33～35; Barrel Size (mm): 1600*3000 • RB20K — Stone Loading Capacity (t): 15-20; Motor Power (KW): 18.5; Rotational Speed (RPM): 33～35; Barrel Size (mm): 2000*3600 • RB40K — Stone Loading Capacity (t): 30-40; Motor Power (KW): 22; Rotational Speed (RPM): 33～35; Barrel Size (mm): 2000*7000 • RB100K — Stone Loading Capacity (t): 50-100; Motor Power (KW): 37; Rotational Speed (RPM): 33～35; Barrel Size (mm): 3000*6000 The machine is described as ideal for polishing a variety of stones including river rock, garden pebbles, color stones, sea glass, and pebble stones used for home decoration. It is primarily used for decoration in hotels and executive lounges as well as gardening, and the large-size pebble stone surface refining machine is stated to be restricted to industrial workshops. The process can polish pebbles without abrasives by having the stones rub against each other, can finish big batches of parts in a single cycle, and can use porcelain balls when the process is not producing the desired results.
