Motorum M2548

Overview

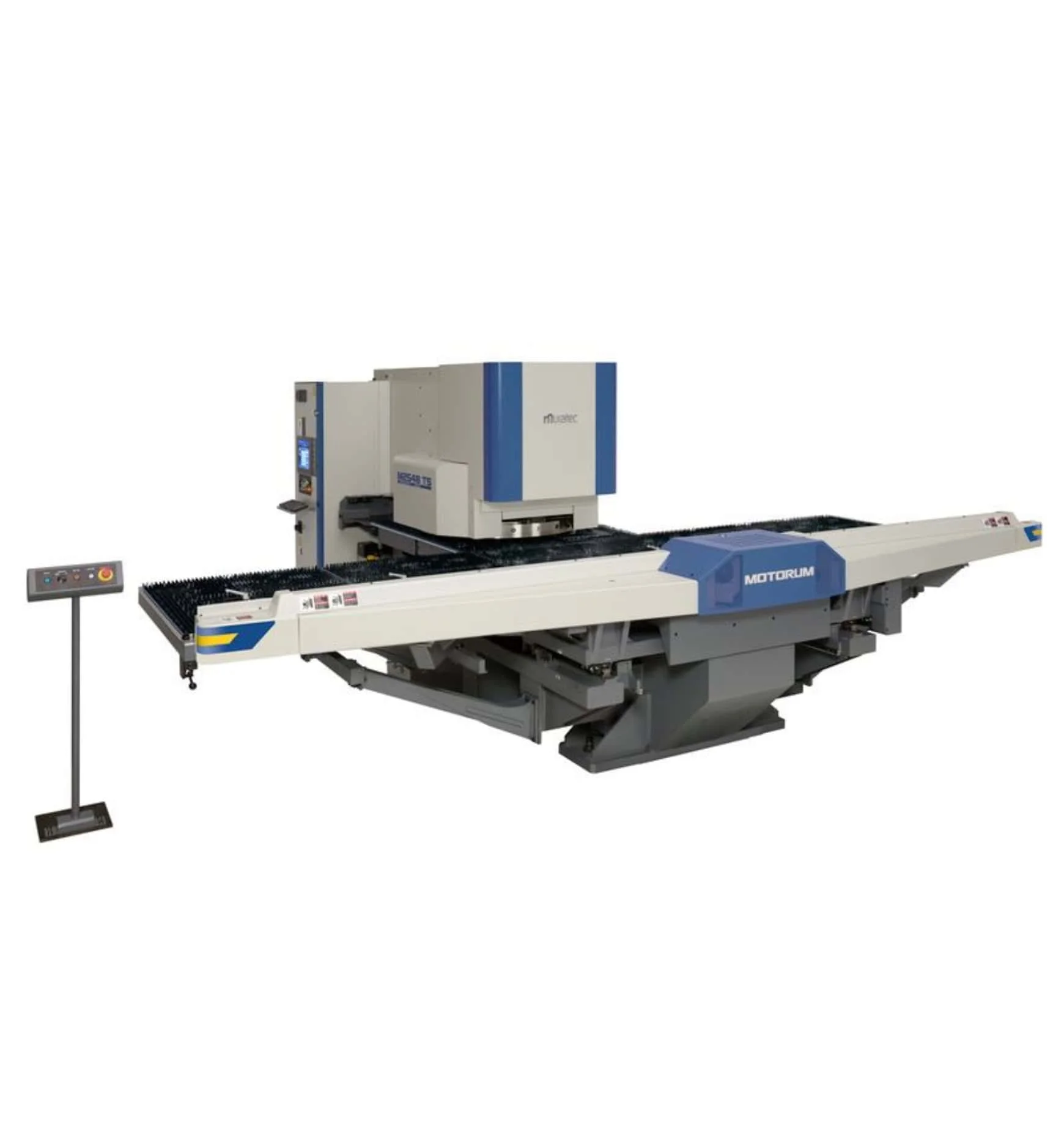

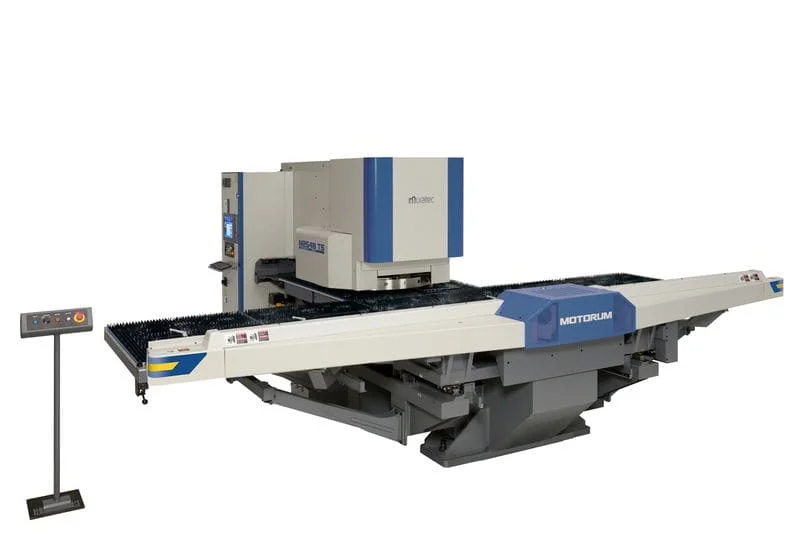

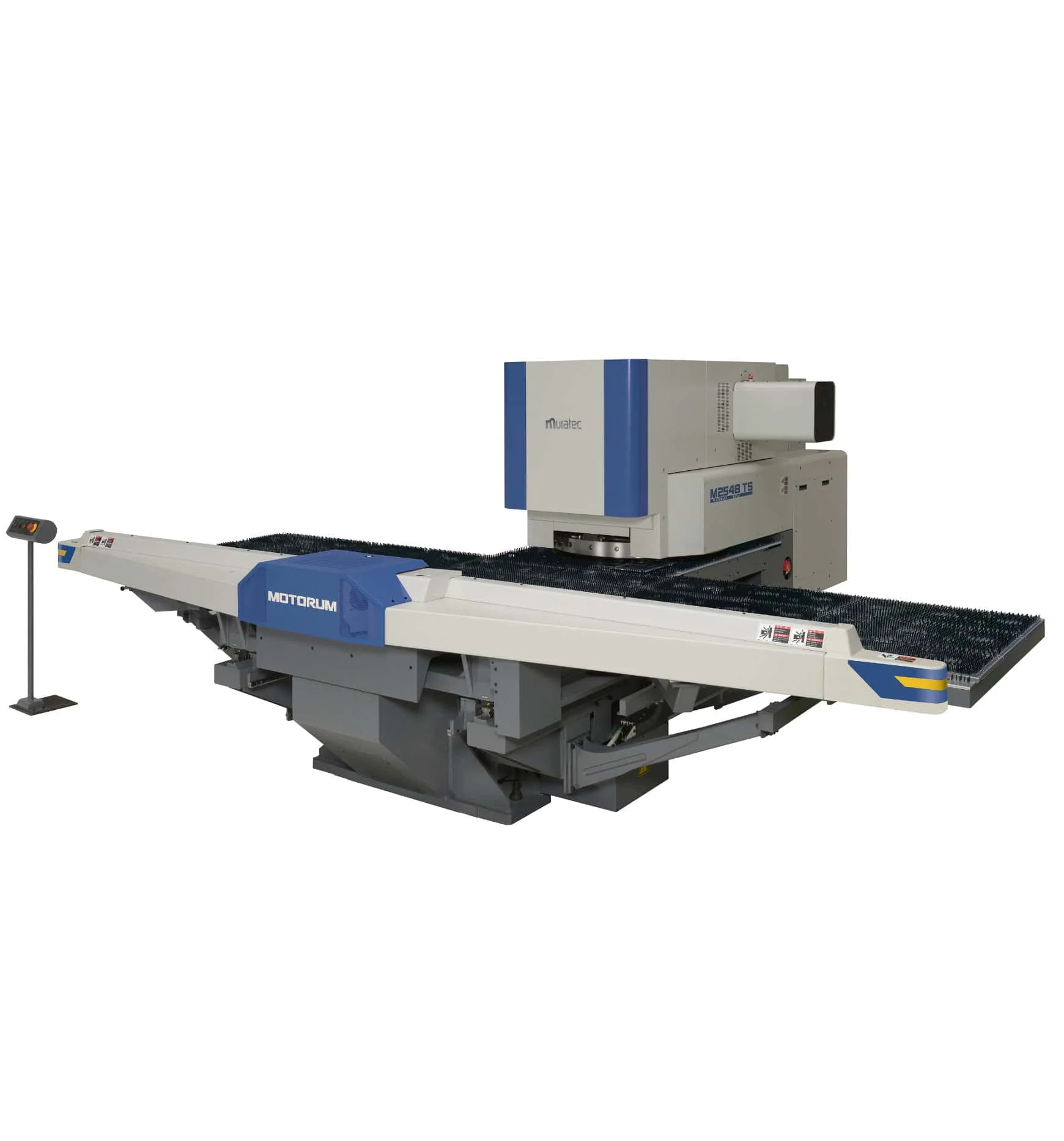

Motorum M2548 is a 25-ton CNC punch press that uses servo-electric drive systems and integrates post-processing tasks such as bending, forming, and tapping within the same system. Punching Capacity: 250 kN (25.5 Metric Tons). Max. Sheet Thickness (Mild Steel): 6.35 mm. Max. Sheet Size (Y x X) w/o Repositioning: 1,250 mm x 2,500 mm; with 1 Reposition: 1,250 mm x 5,000 mm. Simultaneous Axis Speed: 125 m / min. No. of Turret Stations (Wiedemann Style): 44 (4 A / I) / 54 (2 A / I). No. of Turret Stations (Spring Style): 46 (4 A / I). Configurations: Wiedemann-114, S-Spring. The M2548TS variant is described as operating at impressive speeds with energy-efficient performance and lowered maintenance costs, and the M2548TS-Spring variant employs spring-style turret technology to achieve remarkable production speeds alongside energy-efficient operation and reduced maintenance costs. The product description states the machine optimizes energy usage solely during punching. The M2548 is presented for sheet metal fabrication tasks that combine punching with integrated bending, forming, and tapping to minimize setup and programming time. Applicable industries listed for this model are Aerospace & Government, Automotive & Transportation, Consumer Product Goods, Food & Beverage, Healthcare & Medical, Machine & Jobs Shops, Manufacturing & Industrial, Semiconductor & Technology, and Utilities.
