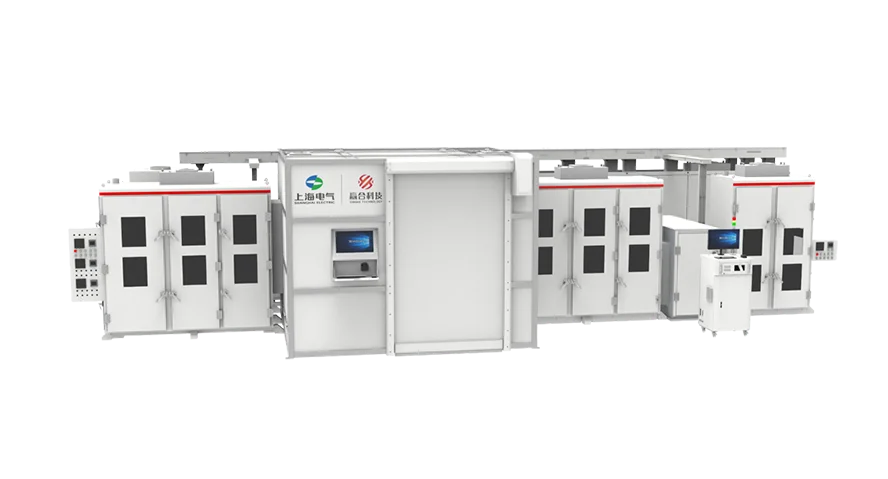

Solid-state Electrolyte Transfer Printing Equipment

Overview

Model name: Solid-state Electrolyte Transfer Printing Equipment. Roller Surface Width: Max.1050mm. Production speed: Max.60m/min. The machine supports automatic rewinding and unwinding with high-speed roller cleaning and can achieve speeds up to 120m/min with a maximum roller width of 1500mm. Equipment parameters by series: - 500 Series: Roller Surface Width (mm) 550; Electrode Width (mm) Max.400; Roller Diameter (mm) Φ500; Mechanical Speed (m/min) Max.30; Correction Accuracy (mm) ±0.1. - 1050 Series: Roller Surface Width (mm) 1050; Electrode Width (mm) Max.950; Roller Diameter (mm) Φ800; Mechanical Speed (m/min) Max.80; Correction Accuracy (mm) ±0.1. Key functional features include folding back type powder spreading, multi-level temperature control, and roller multistage speed difference control. The product listing references related equipment such as Solid-state Dry Film Formation & Composite Integrated Equipment and Solid-state Wet Coating Equipment. The equipment is described as specially designed for all-solid-state batteries and dry-process electrode technology and is intended to enable stable production under various complex operating conditions, including different materials, formulations, and processes. The overall process time is stated as ≤ 30 minutes per tank. The product listing explicitly notes it is ideal for battery calendering machine and slitting integrated machine processes. The Solid-state Wet Coating Equipment description indicates the use of a high-precision adjustment structure with a coating cantilever roller system to ensure coating process accuracy.
