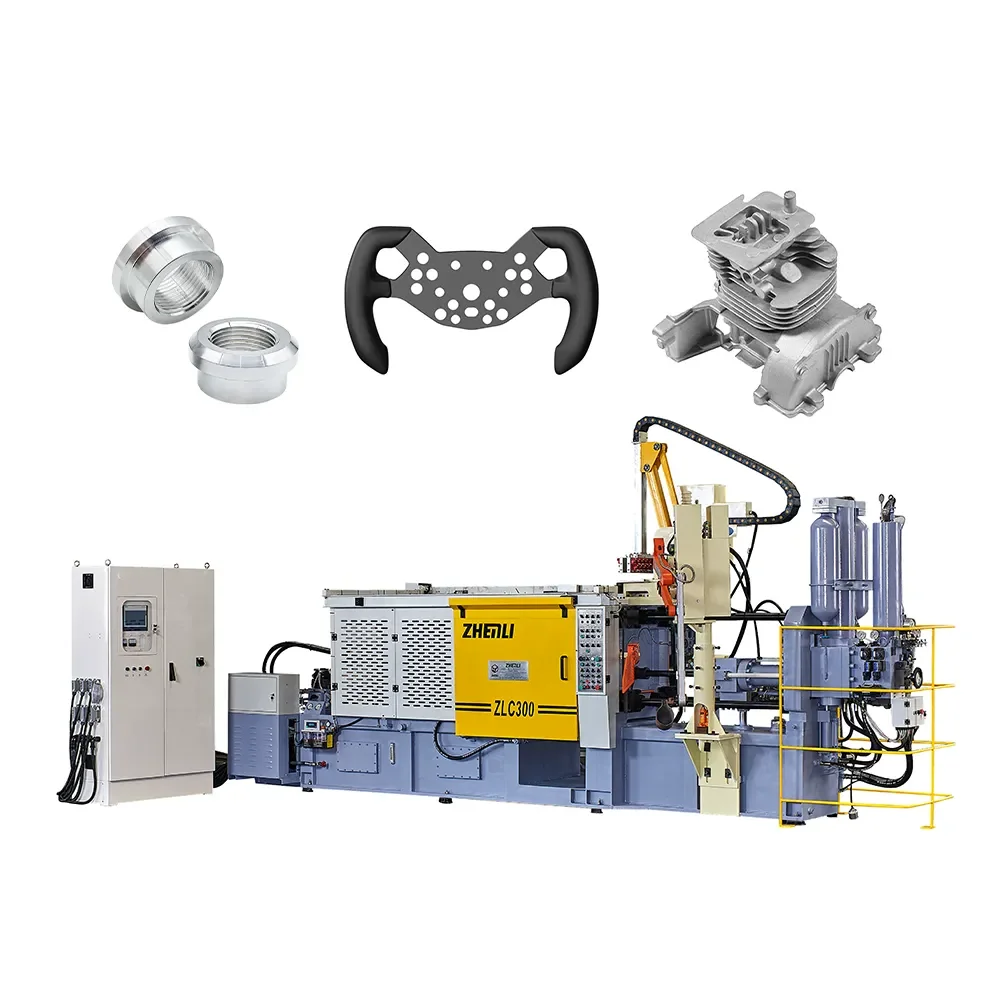

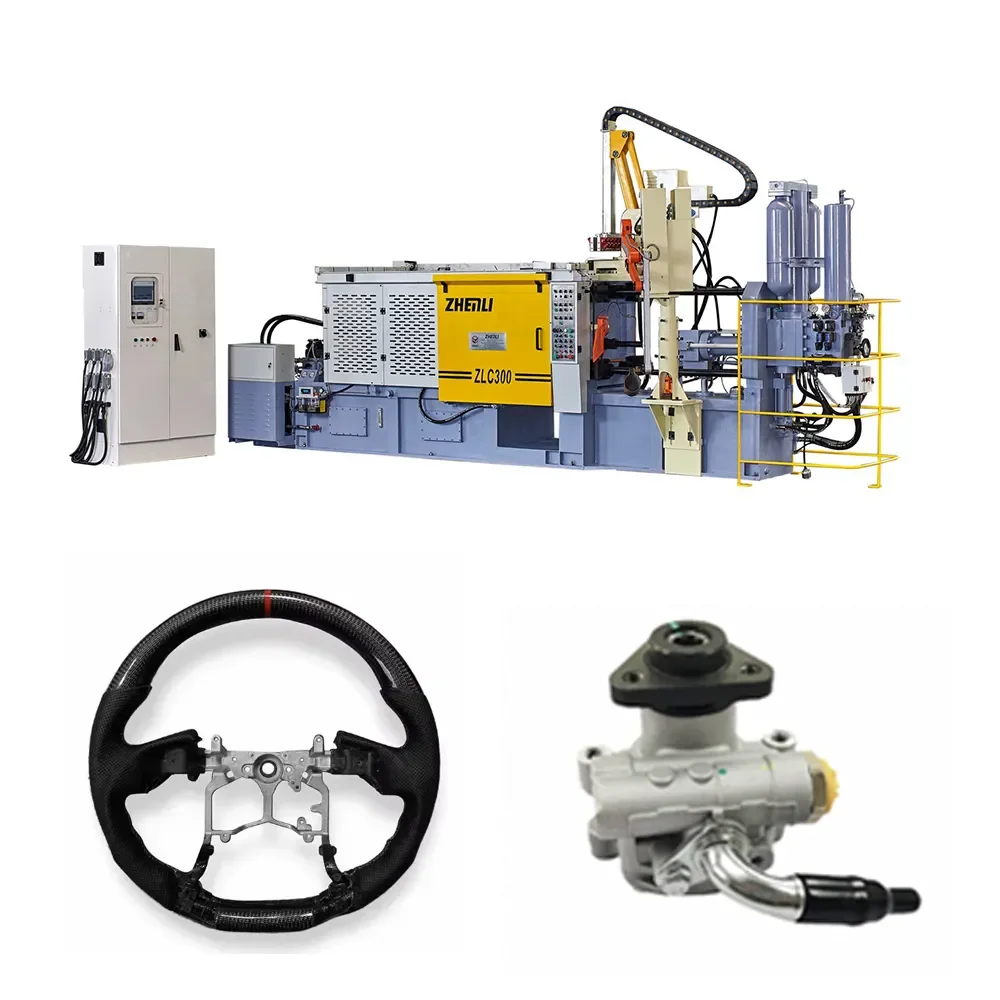

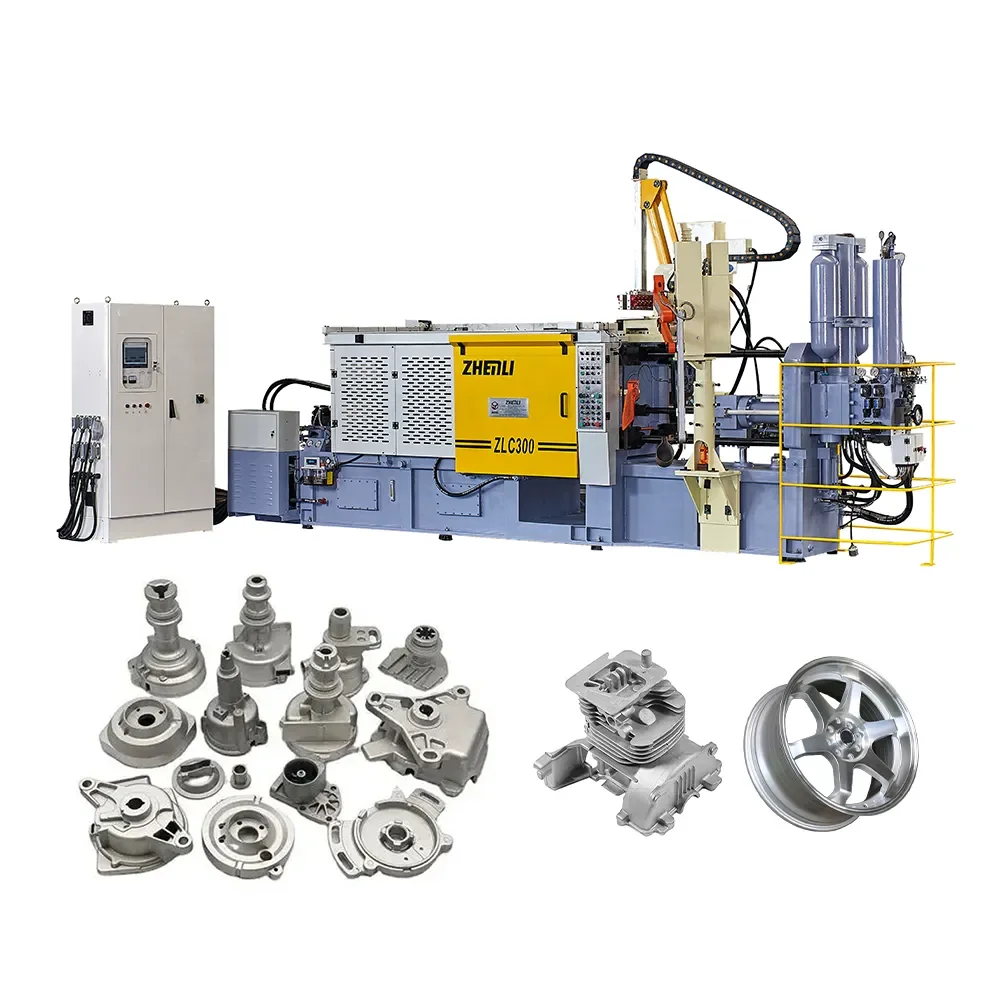

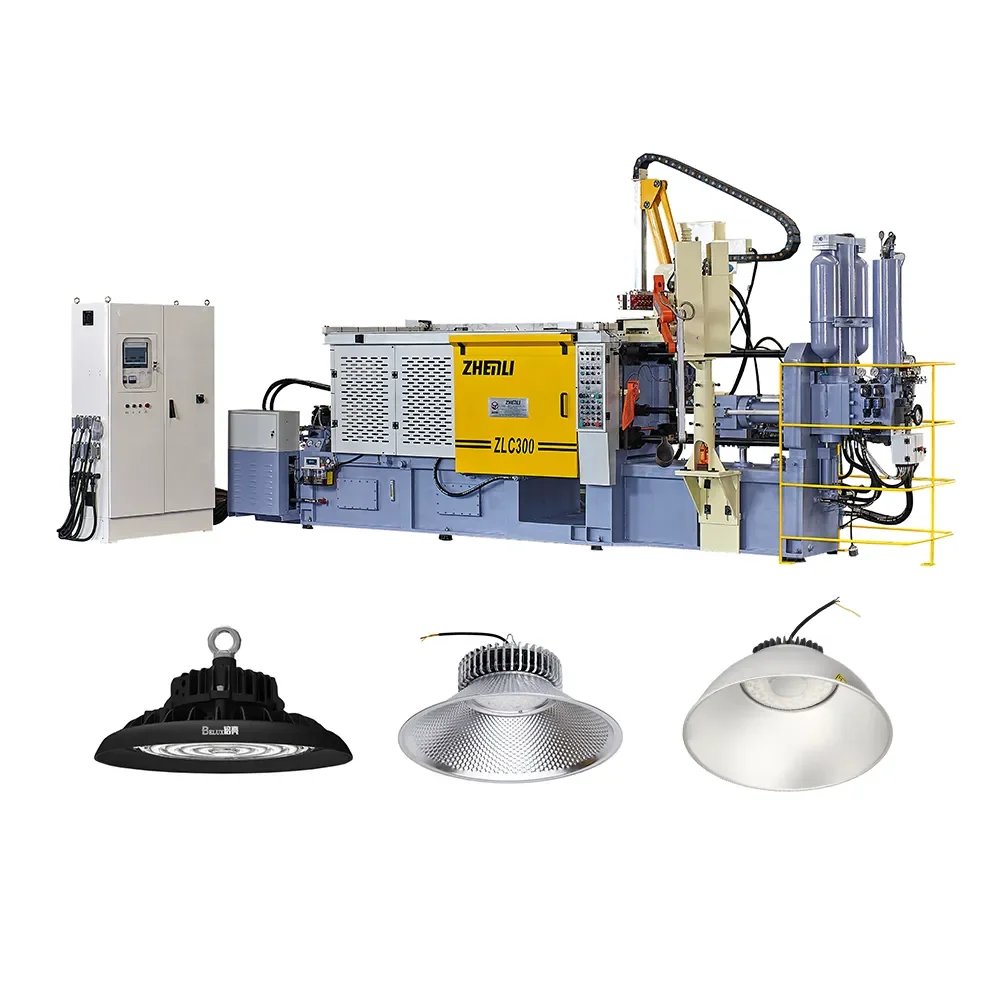

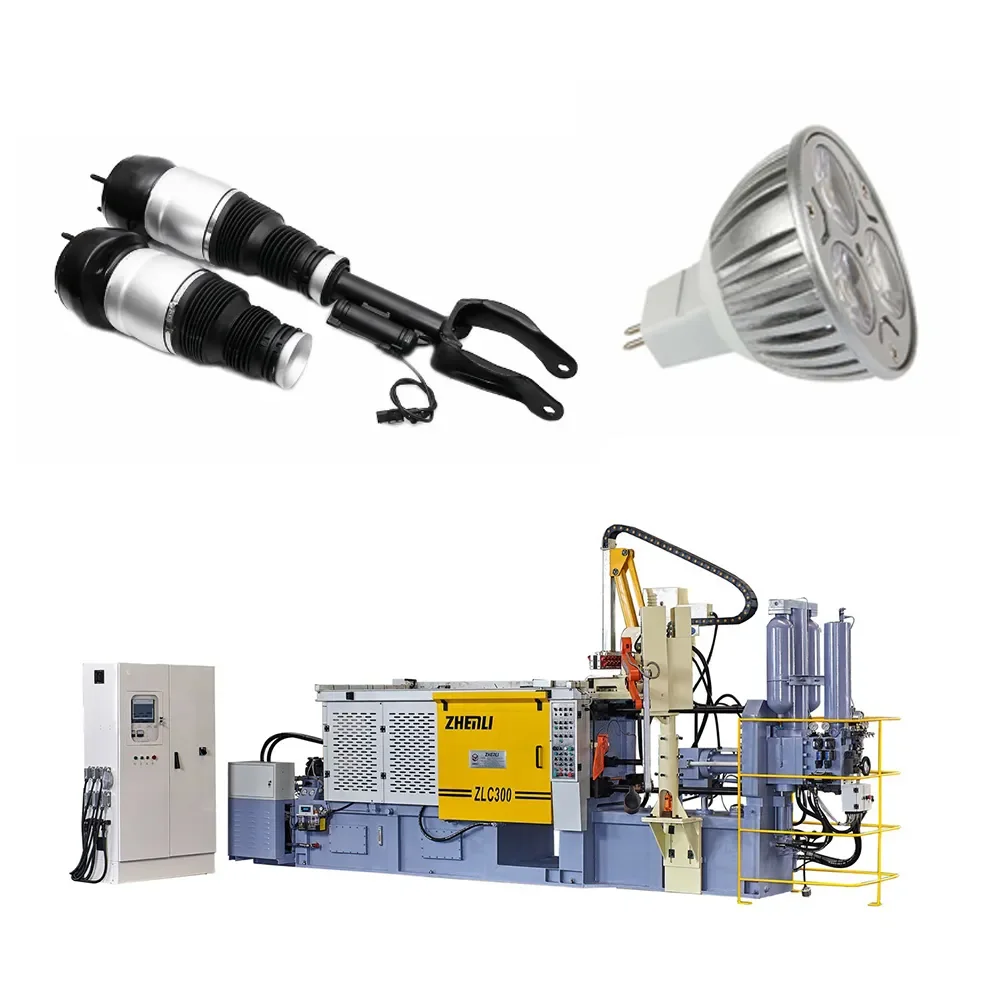

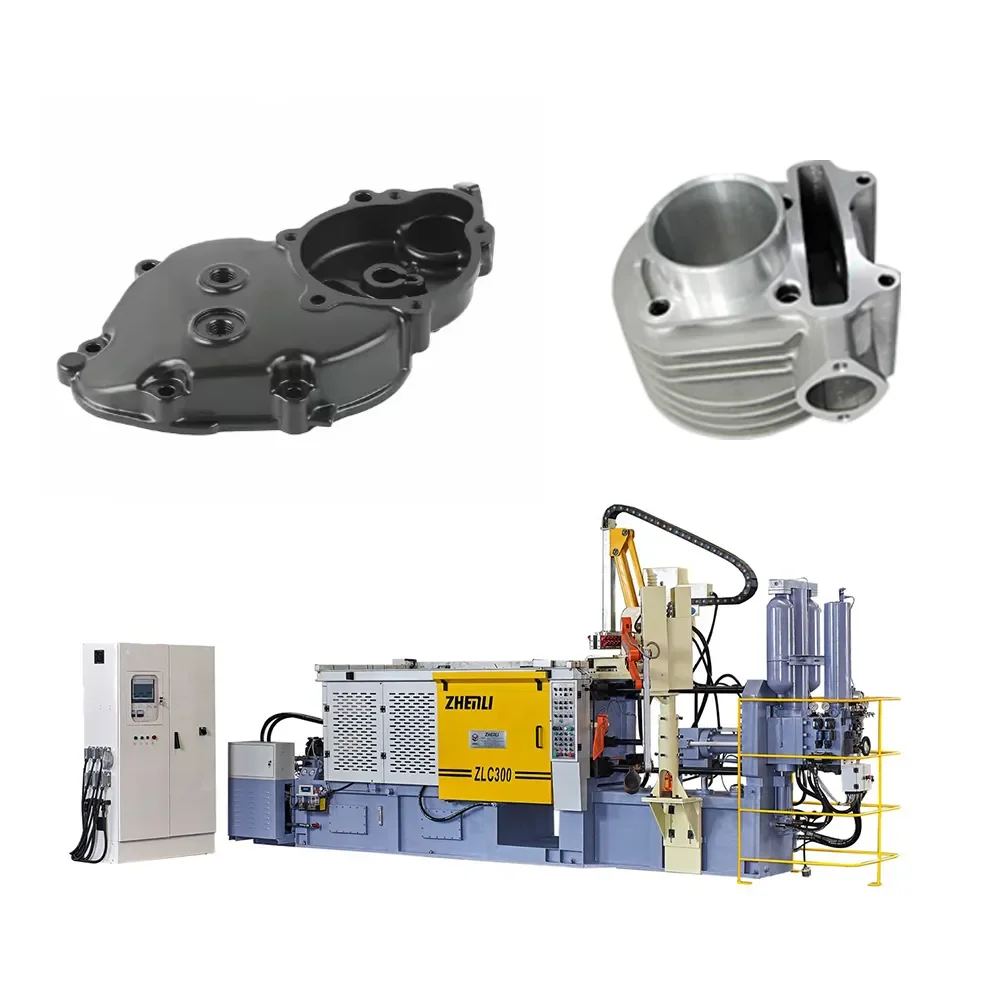

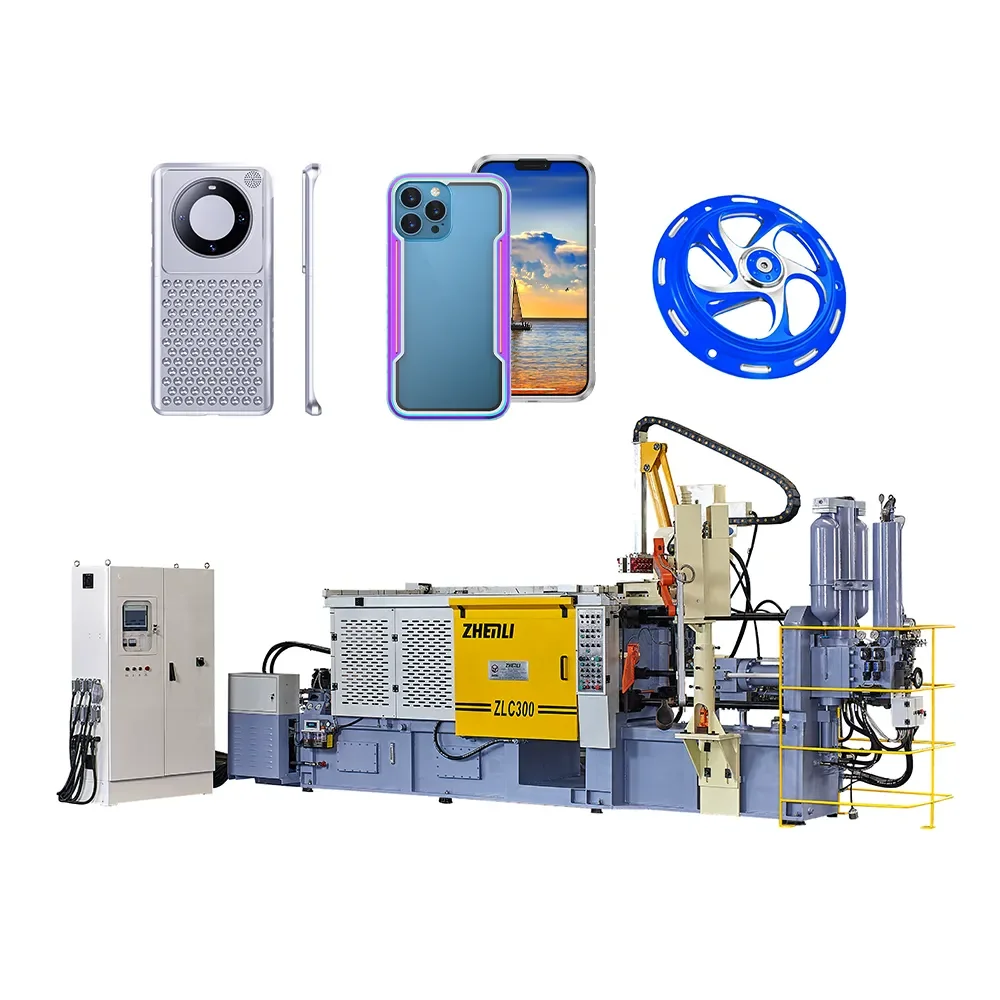

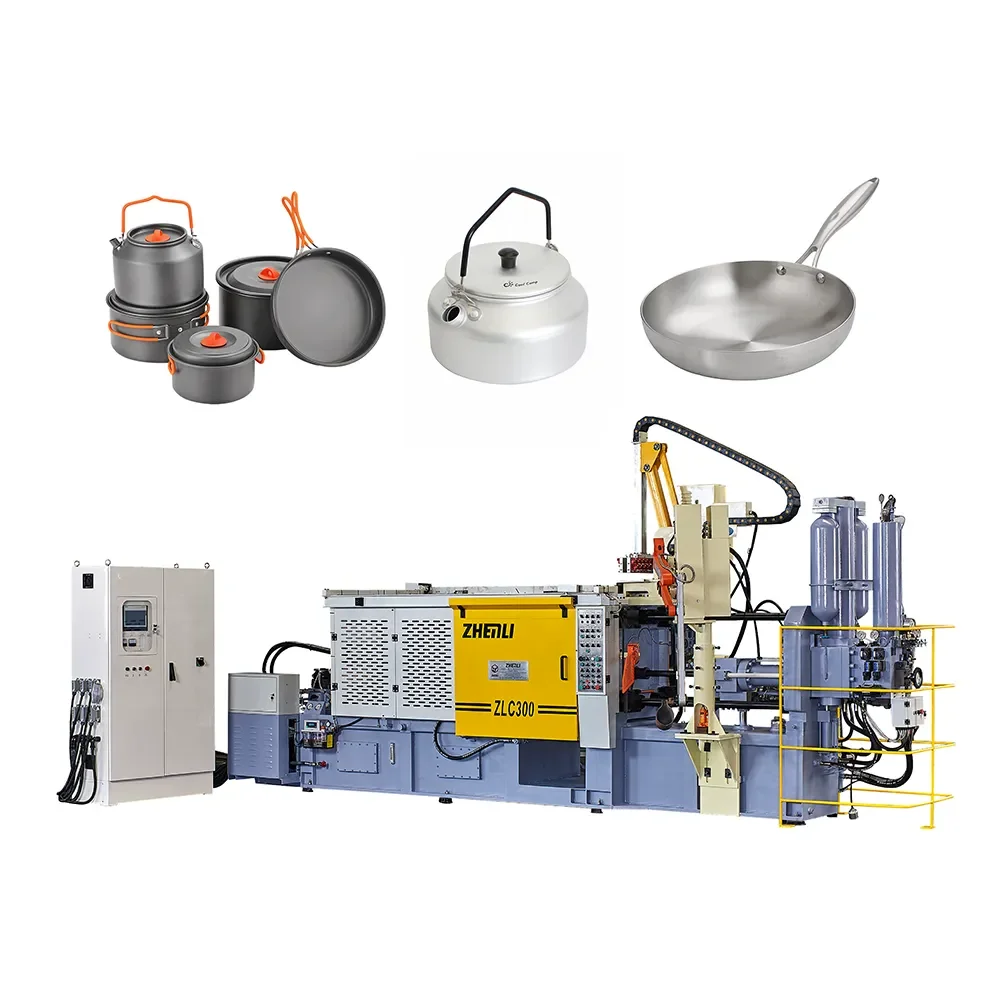

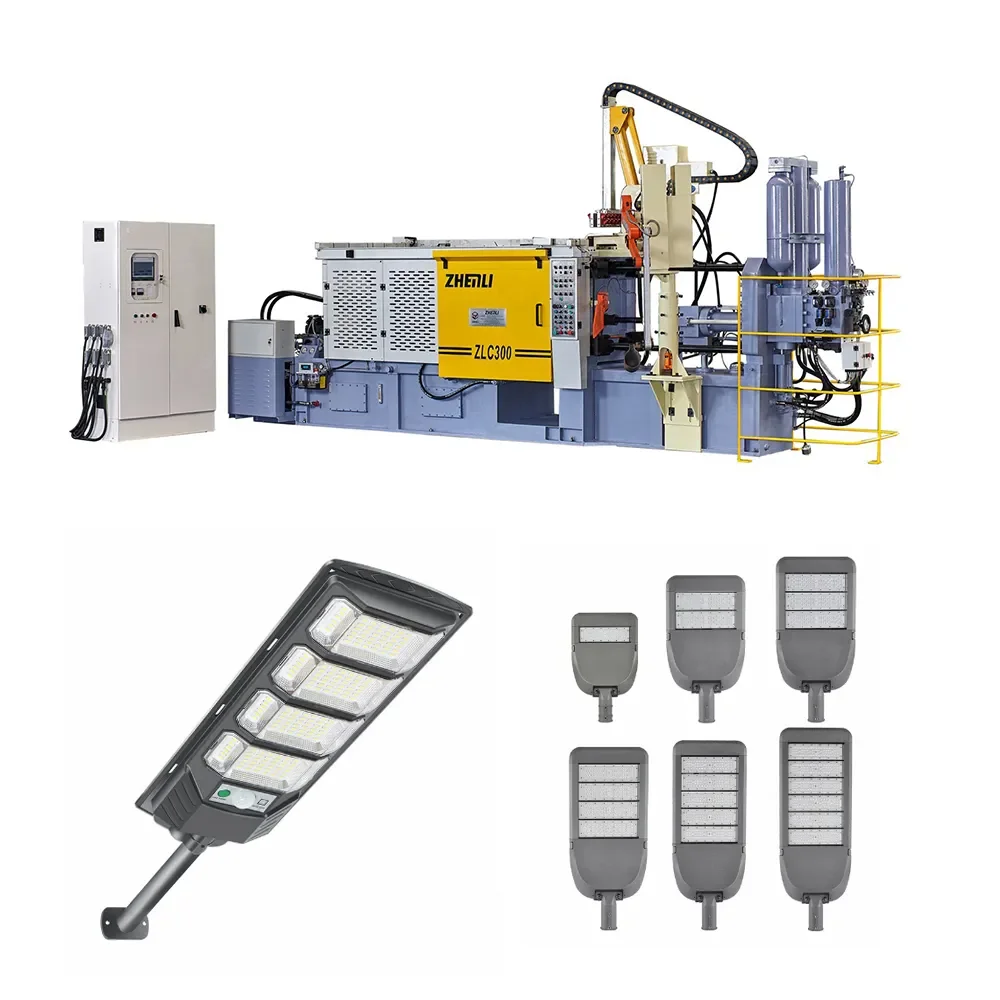

Zhenli 300T Gas Stove Brass Valve Diecasting Machine Automatic Brass Gravity Casting Machine

Overview

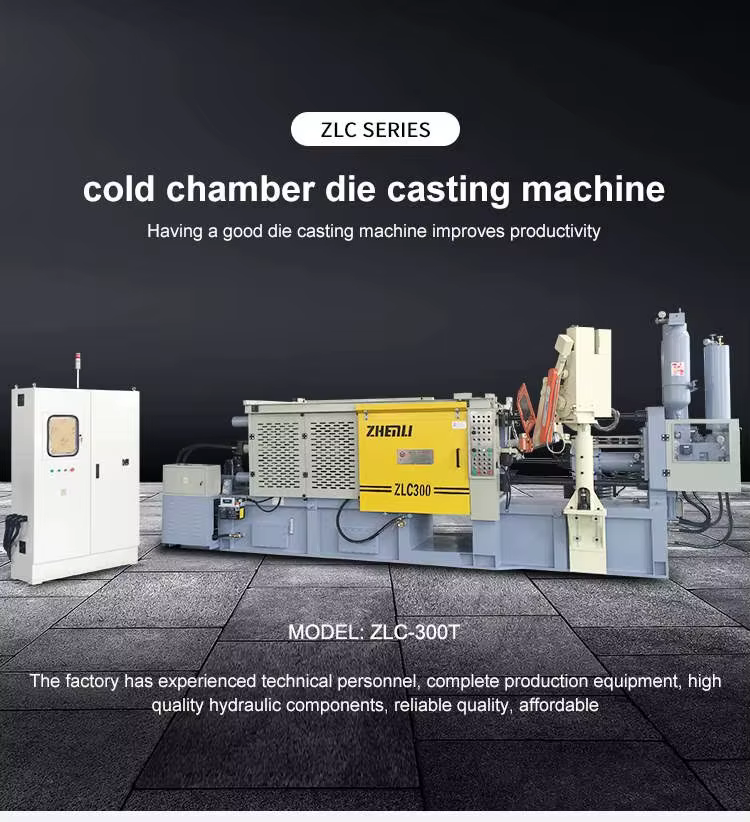

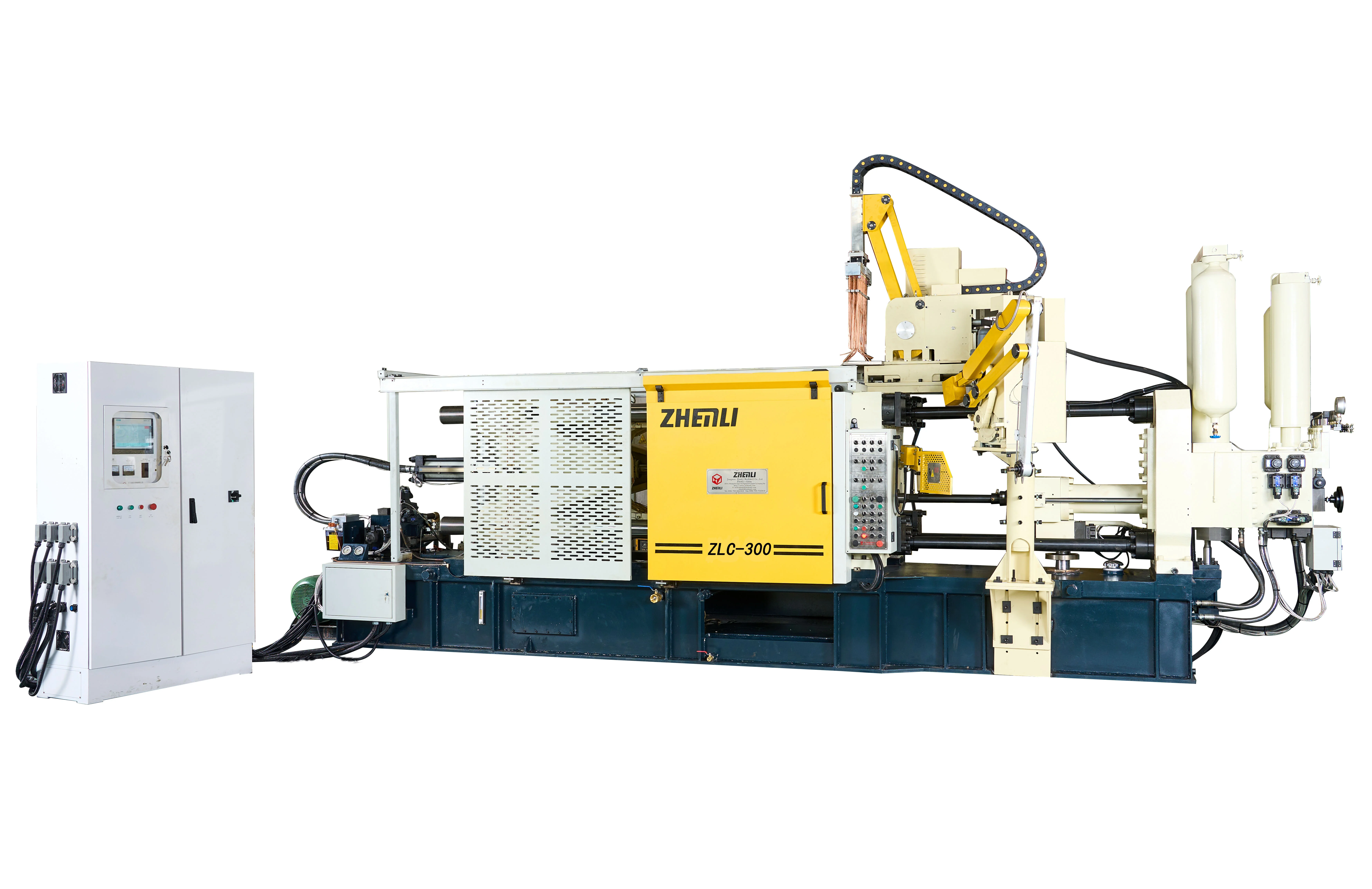

Model ZLC-300T (Zhenli 300T). Main features include Automatic Control Function Of Injection Parameters, Injection Curve Display Function, Automatic Extraction, Display and Analysis of Injection Parameter Function, and Digital Control Function. Key machine specifications: - Clamping Force: 3000 kN - Die Clamping Stroke: 470 mm - Ejection Force: 150 kN - Ejection Stroke: 110 mm - Die Height ( Min-Max): 250-650 mm - Die Platen Size(HxV): 860x875 mm - Space Between Tie Bars: 560x560 mm - Shot Position: 0，-125 mm - Shot Strock: 440 mm - Casting Force ( Intensify ): 330 kN - Plunger Diameter: 50, 60, 70 mm - Injection Weight(Aluminum): 1.5, 2.1, 2.9 kg - Casting Pressure (Intensify ): 170, 118, 87 MPa - Casting Area: 172, 252, 343 cm² - Max Casting Area(40MPa): 750 cm² Hydraulic, motor and dimensional data: Chamber Flange Diameter: 110 mm; Height Of Pressure Chamber Flange: 10 mm; Plunger Penetration: 165 mm; Main Pump Driving Motor/Servo Motor: 18.5/30 kW; Hydraulic Working Pressure: 14 MPa; Oil Tank Capacity: 750 L; Machine Dimensions (LxWxH): 6500×1700×2700 mm; Referential Machine Weight For Uplifting: 11.8 T. The Zhenli 300T is presented as an automatic brass gravity casting machine for diecasting gas stove brass valves. Its operational functions—Automatic Control Function Of Injection Parameters, Injection Curve Display Function, Automatic Extraction, Display and Analysis of Injection Parameter Function, and Digital Control Function—support automatic control and monitoring of the injection and casting process for that application.
