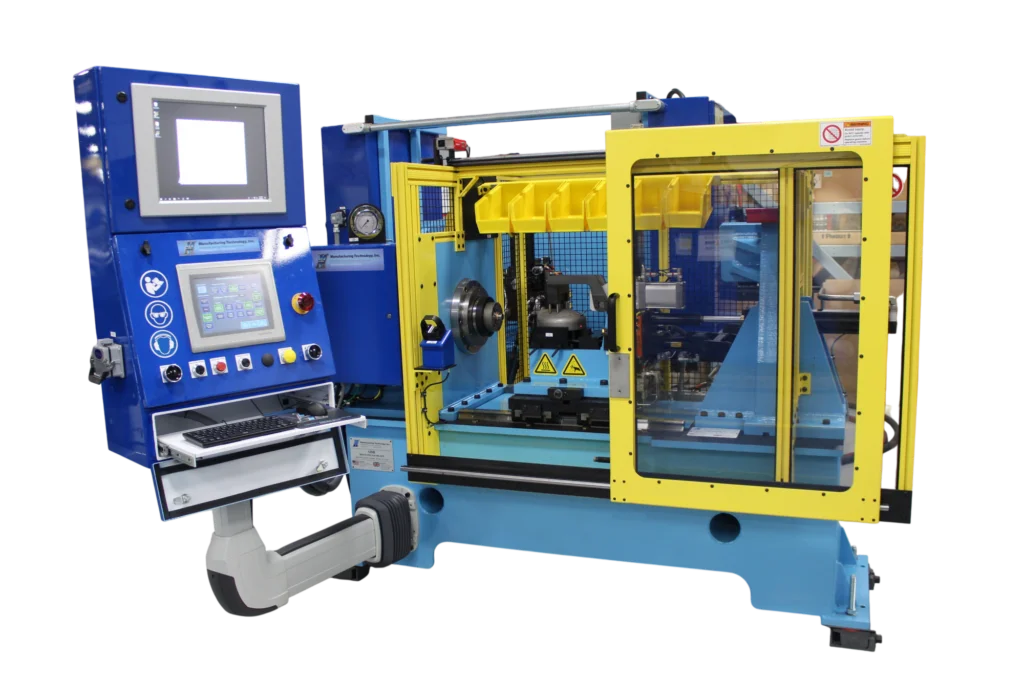

120B/BX/V/T Rotary Friction Welder

Overview

120B/BX/V/T is an inertia rotary friction welder intended for solid-state joining of cylindrical components using a rotation-plus-axial-force (inertia) welding process. The model designation covers rotary friction welding configurations in the Inertia Friction Welder product line. Available thrust capacity across configurations is given as 500lb/2.22kN to 4,500,000lb/20,000kN, indicating selection options sized for light to very heavy axial force requirements. Rated maximum solid stock capacity is listed as 25 • 1.05 (Max Diameter Solid (in•mm)). Used in industrial-scale manufacturing where solid-state, axial-force-driven rotary welds are required for joining solid cylindrical parts; select a configuration that matches the axial force and part-diameter demands of the application. The wide thrust range (500lb/2.22kN to 4,500,000lb/20,000kN) supports applications from modest-duty assemblies up to very high-force, heavy-section welding tasks, with the stated maximum solid diameter capacity of 25 • 1.05 guiding part-size compatibility. Choose the specific B/BX/V/T variant based on required thrust capacity and component diameter to align machine capability with production and engineering requirements.
