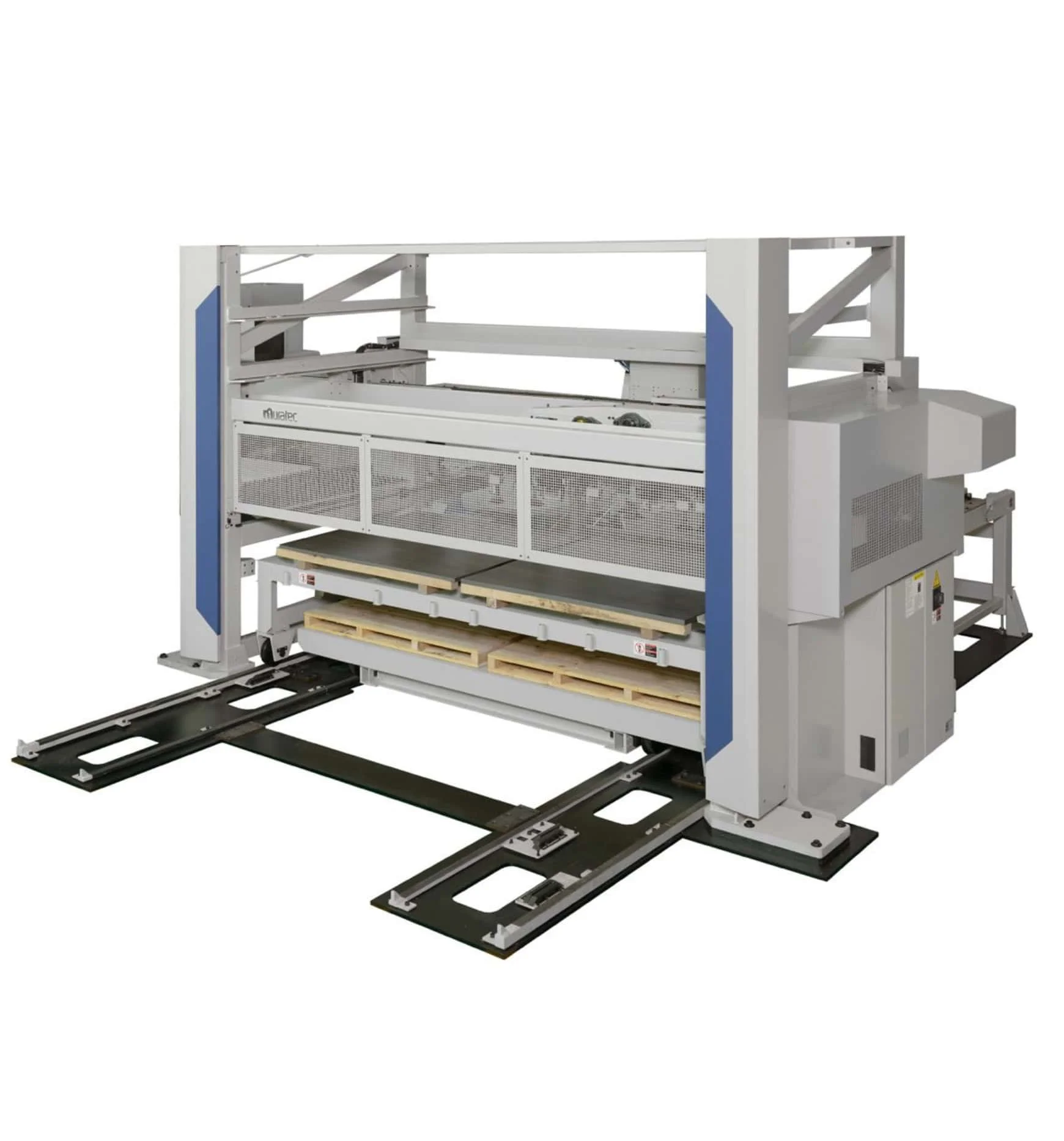

FS3012

Overview

The FS3012, part of the FS Series of automated loading and unloading cells, is a cost-effective system for loading and unloading full-size material onto a turret punch press and is described as effectively doubling the production capacity of a standalone punch press. It features same-side load and unload capability and is offered in Configurations: 4x8, 4x10, 5x10, Laser 4x10. - Max. Sheet Size (Y x X): 1,250 mm x 3,050 mm - Min. Sheet Size (Y x X): 300 mm x 750 mm - Material Thickness: 0.6 mm – 4.5 mm - Max. Stack Weight: 2 US Tons - Max. Stack Height (Including Wood Pallet): 260 mm The FS3012 automates seamless loading and unloading of full-size material onto turret punch presses and enables front-end loading and unloading of raw materials and finished products. Same-side load and unload capability allows machine operators to attend to maintenance and manual operations, and the system is described as delivering lights-out reliability to expand turret production beyond standard working hours. Industries listed for the FS3012 include Aerospace & Government, Automotive & Transportation, Machine & Jobs Shops, and Manufacturing & Industrial.
