EI-Pulley Ace™

Overview

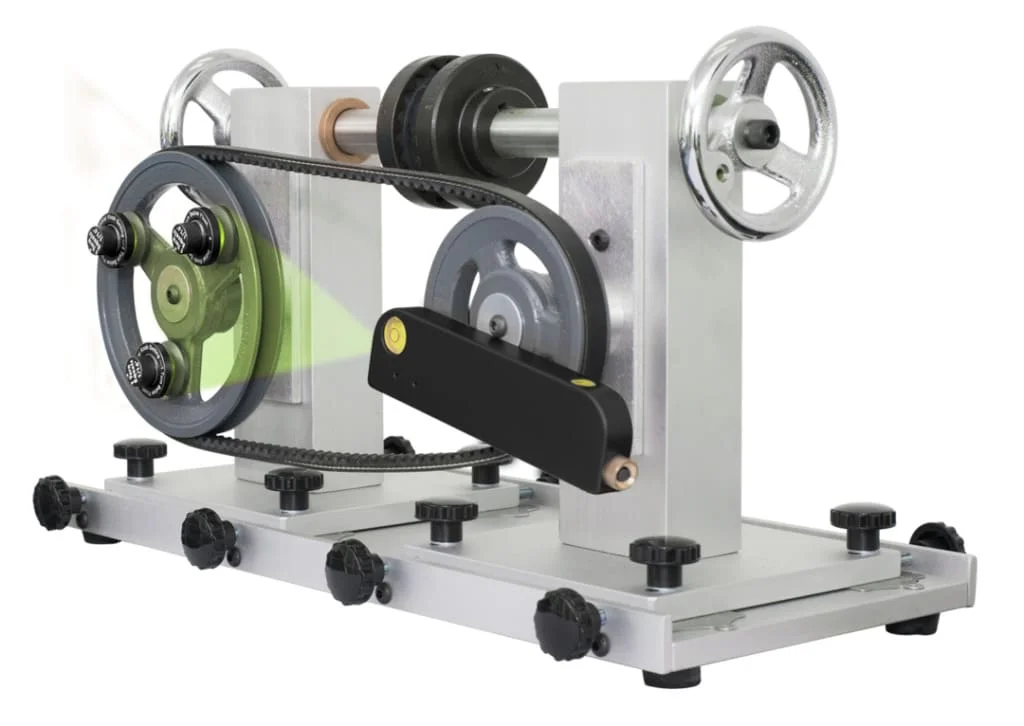

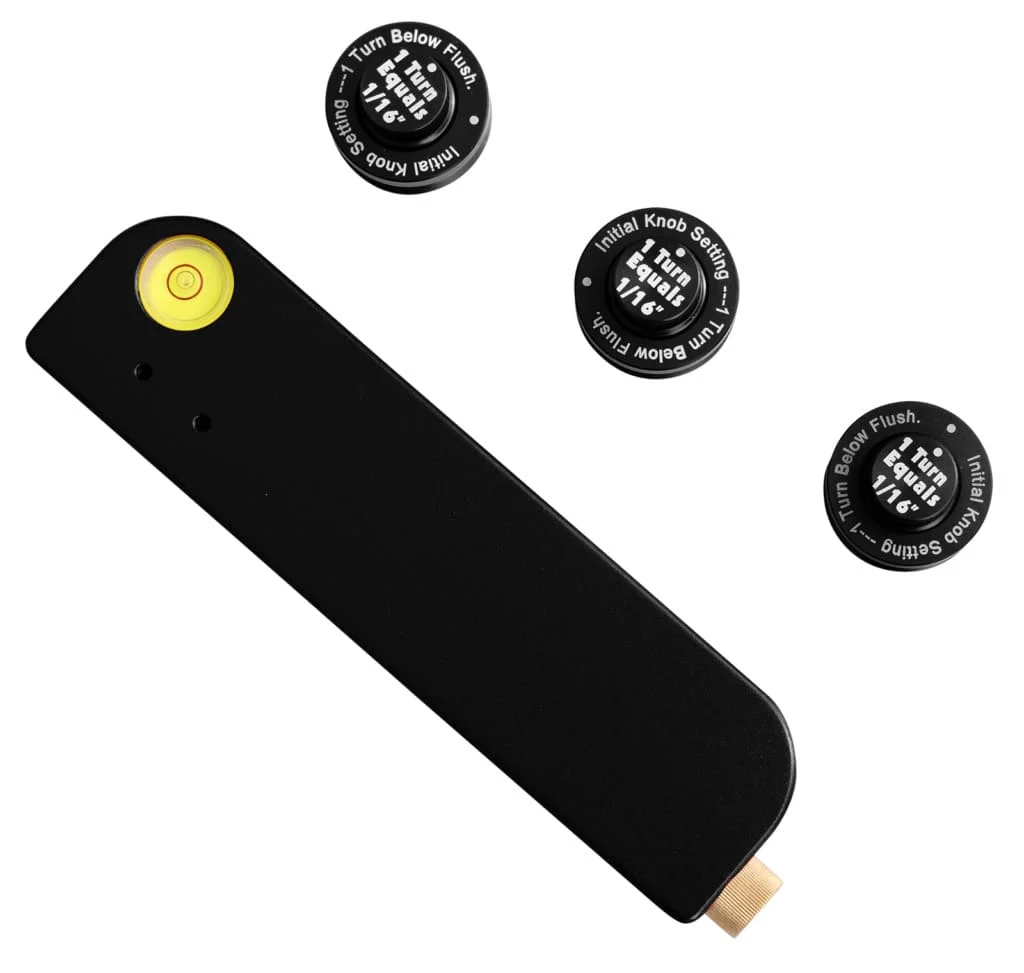

EI-Pulley Ace™ is a sheave and pulley alignment system for belt and sheave alignment, presented with the tagline "Undeniable Accuracy" and backed by over 35 years of proven experience. It is designed to decrease vibration and minimize belt and motor bearing wear, and is compact for use on small diameter sheaves with a fast setup. The system uses ultra-green laser technology with visibility 400% greater than red beam lasers and includes laser level capabilities to check the height and flatness of motor and gearbox mounting plates. - Laser Power: Class II - Battery: 2 "AAA" Batteries powered. Up to 10 hours of operating time. - Level Vial: 40 Arc Min - Beam Spread: 60" @ 3 ft; Line Width: 1/16" @ 30 in - Accuracy: 0.070" or over 7 times more than industry standards - Dimension: 1.75" x 6.75" x 0.625" (144 x 171 x 15 mm) - Alignment Knobs (3): Retro-reflective; Adjustable over 1"; Dimension: 1 1/4" dia. x 1" Length; High Grad Hard Anodized Aluminum; Magnets: Nickel Plated Rare Earth; IP67 Rated - Case: Rigid plastic case with soft-foam filled interior - MSRP: $1899.95 Aligns belts, pulleys, sheaves, sprockets, gear trains, rollers, platforms, conveyors, and other plant equipment. Its laser level capability supports checking the height and flatness of motor and gearbox mounting plates. The compact design targets use on small diameter sheaves while reducing vibration and minimizing belt and motor bearing wear.
