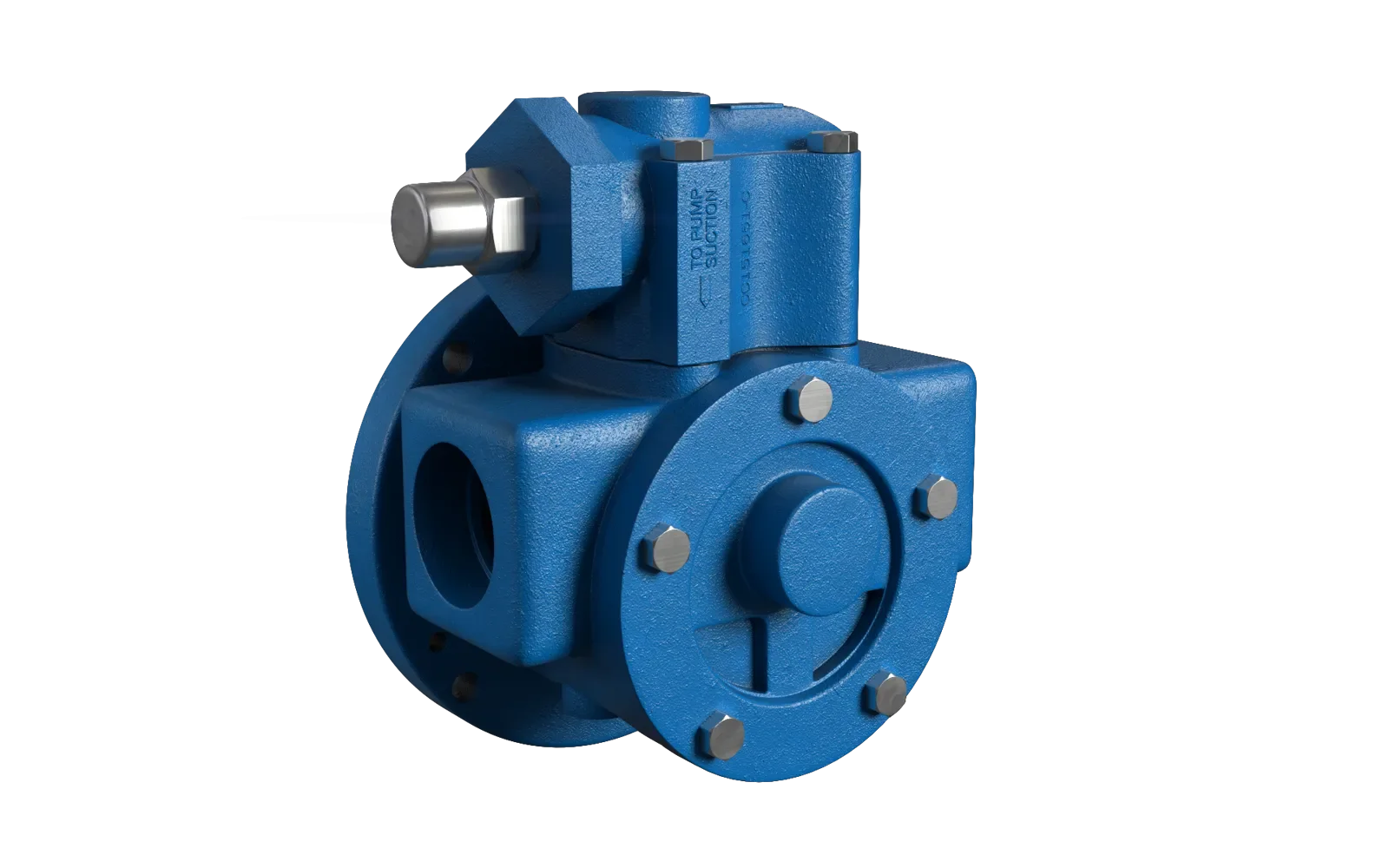

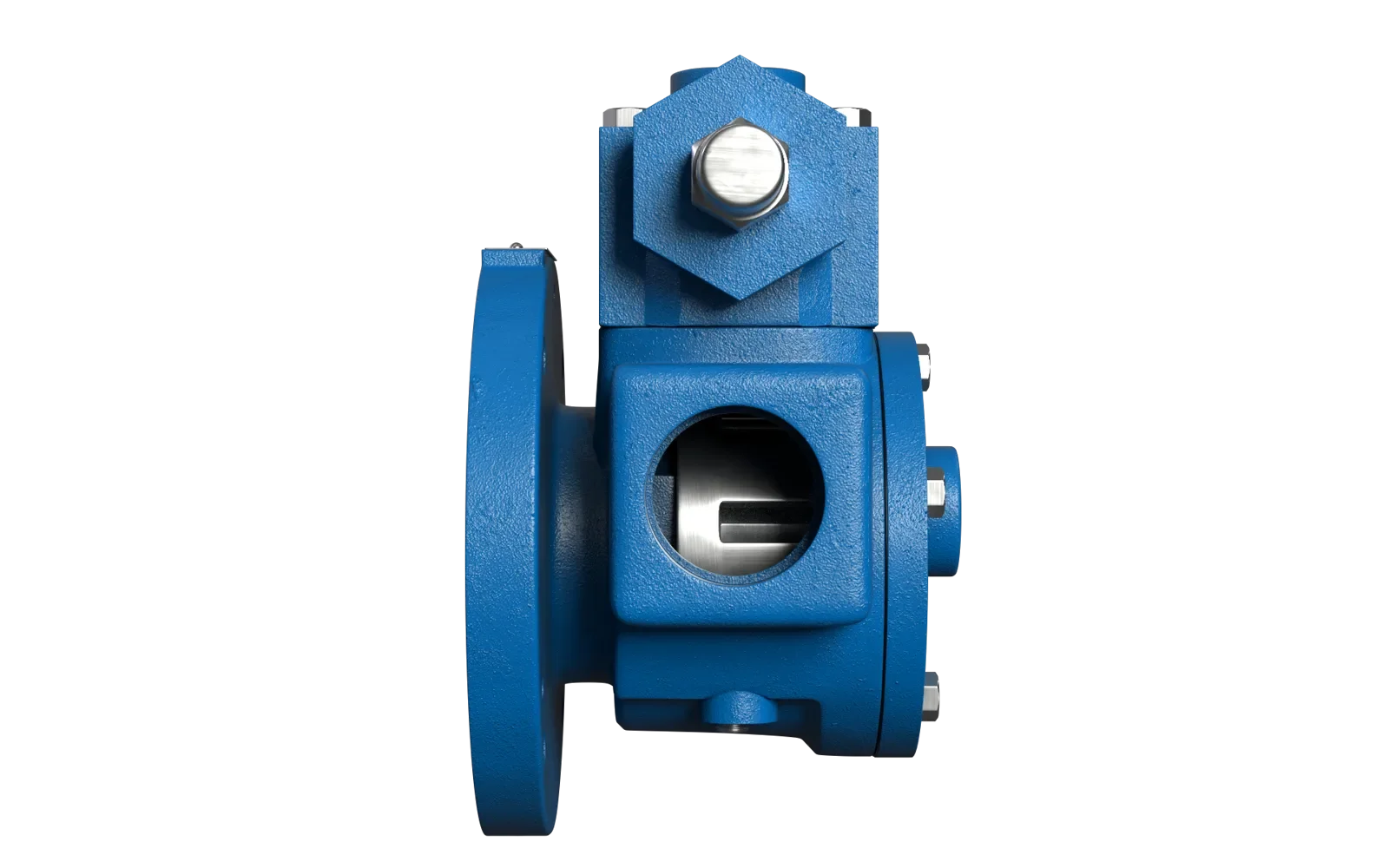

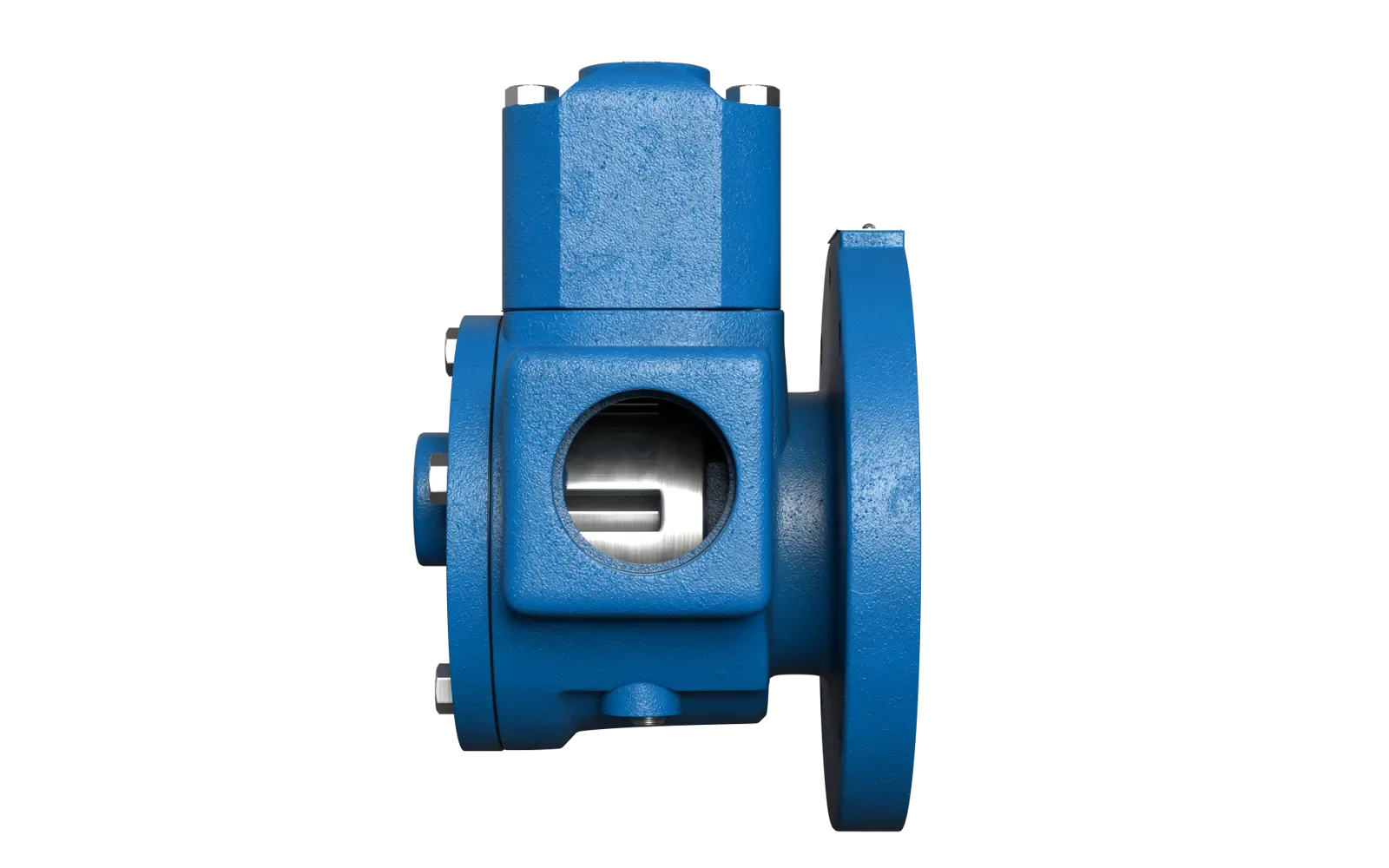

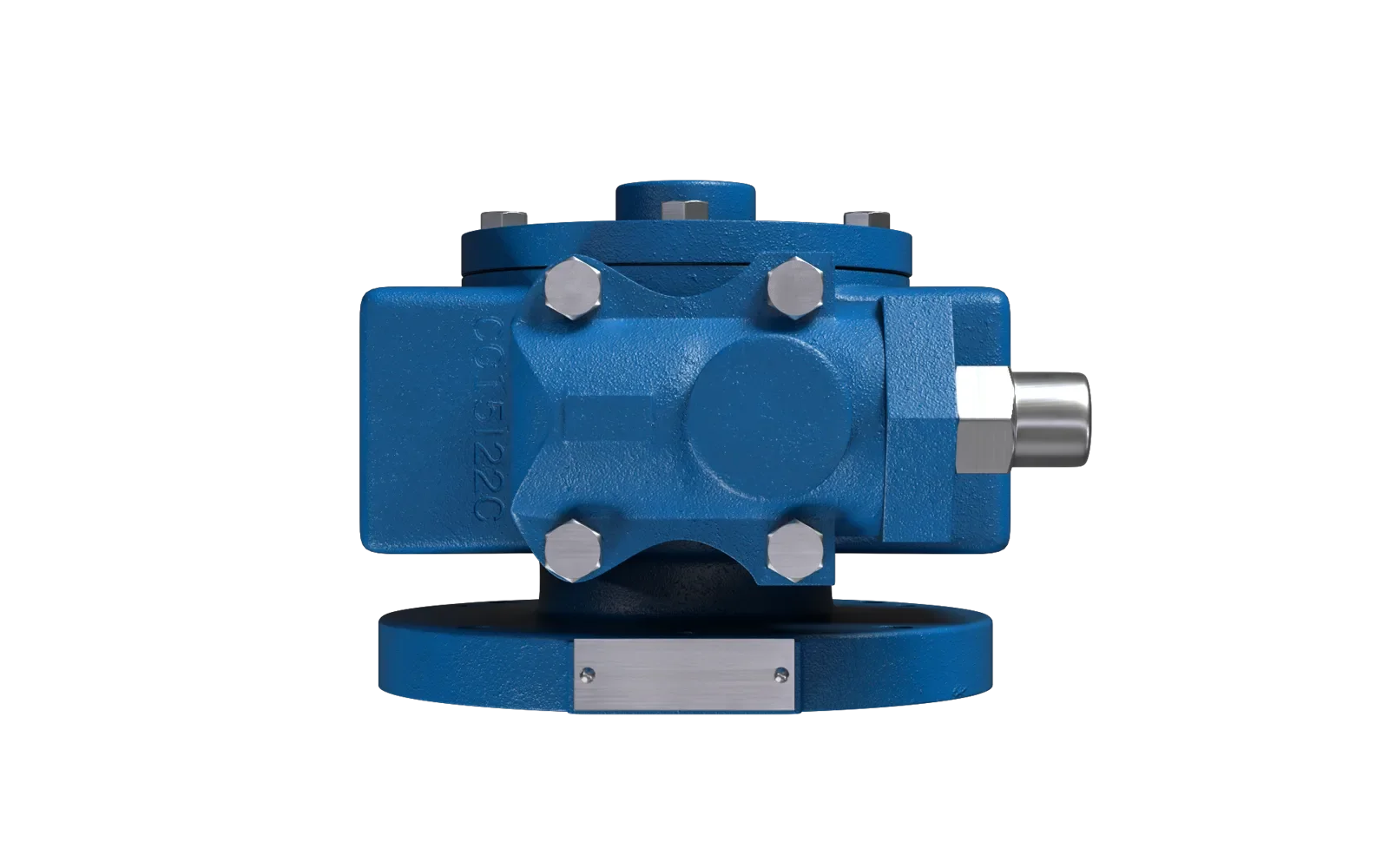

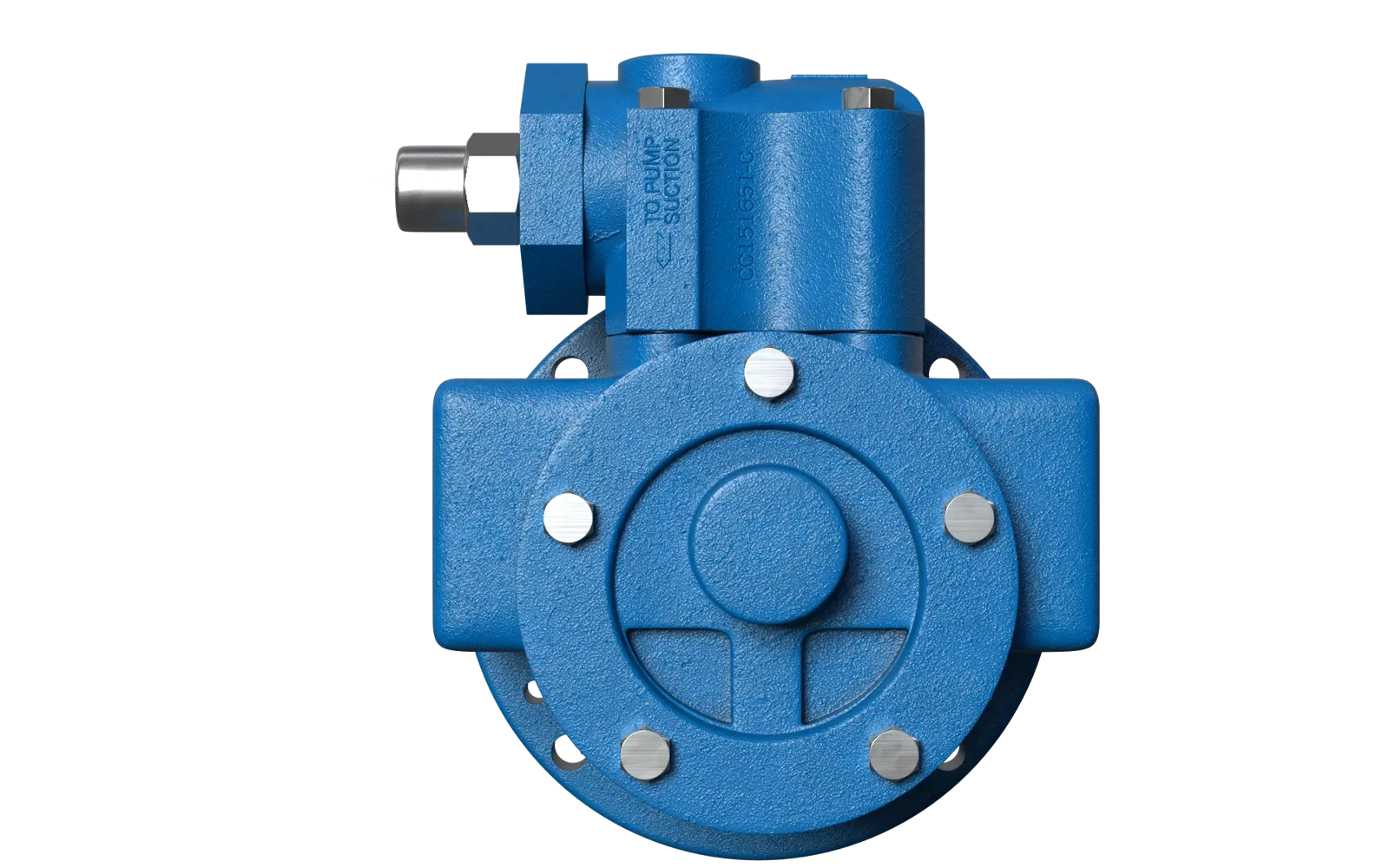

Close Coupled Pumps - CC Series (Model: 009, 015, 020, 030)

Overview

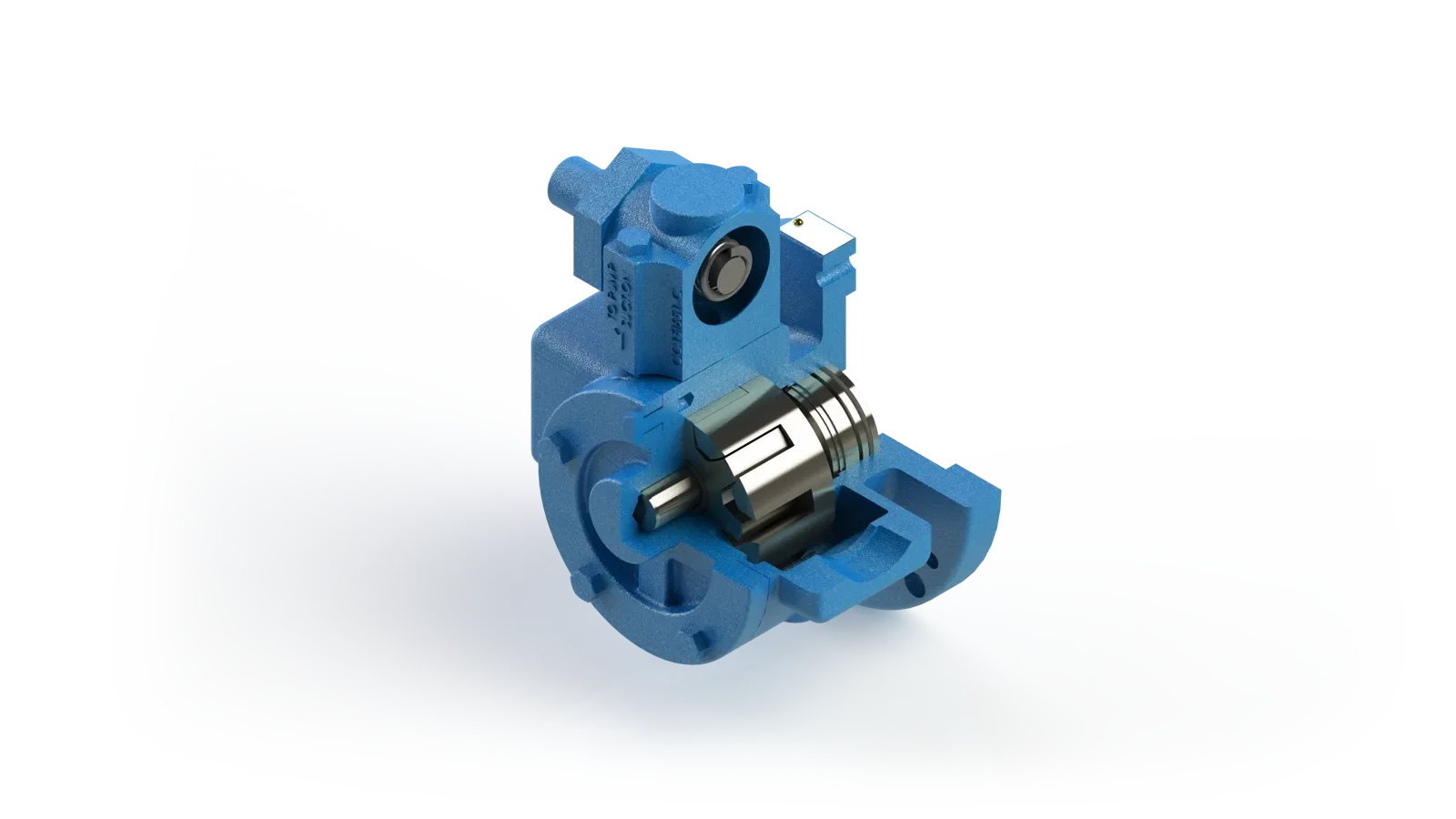

Close Coupled Pumps - CC Series (Model: 009, 015, 020, 030) are Ingersoll Rand lubrication pumps for lubrication, circulation, and fluid handling applications. They feature cast iron construction with ductile iron rotors and idler gears, and include a carbon bushing idler gear, Viton Mechanical Seals, and an Internal Relief Valve. The pumps have opposite NPT threaded ports, mount directly to NEMA C-face motors, and offer a flow range of 6.1 to 32 GPM. They are capable of handling viscosities up to 10,000 SSU, pressures up to 100 PSI, and temperatures up to 375°F. Model-specific specifications: - Model 9 — Port Number: 1; Nominal Flow Capacity: 9.4 gpm* | 35.5 lpm *; Speed (max): 1800 RPM - Model 15 — Port Number: 1 1/2; Nominal Flow Capacity: 16.6 gpm* | 62.8 lpm*; Speed (max): 1800 RPM - Model 20 — Port Number: 1 1/2; Nominal Flow Capacity: 22.2 gpm* | 84.0 lpm*; Speed (max): 1800 RPM - Model 30 — Port Number: 1 1/2; Nominal Flow Capacity: 32.5 gpm* | 123 lpm*; Speed (max): 1800 RPM The CC Series is positioned for lubrication, circulation, and fluid handling applications. Specific application examples called out for the series include Fuel Oil Transfer, Drilling Chemicals, Waste Oil Filtration, and Lube Oil Applications. The product literature also cites use in industrial lubrication systems and glycol circulation, as well as filtration, water treatment technologies and processing.
