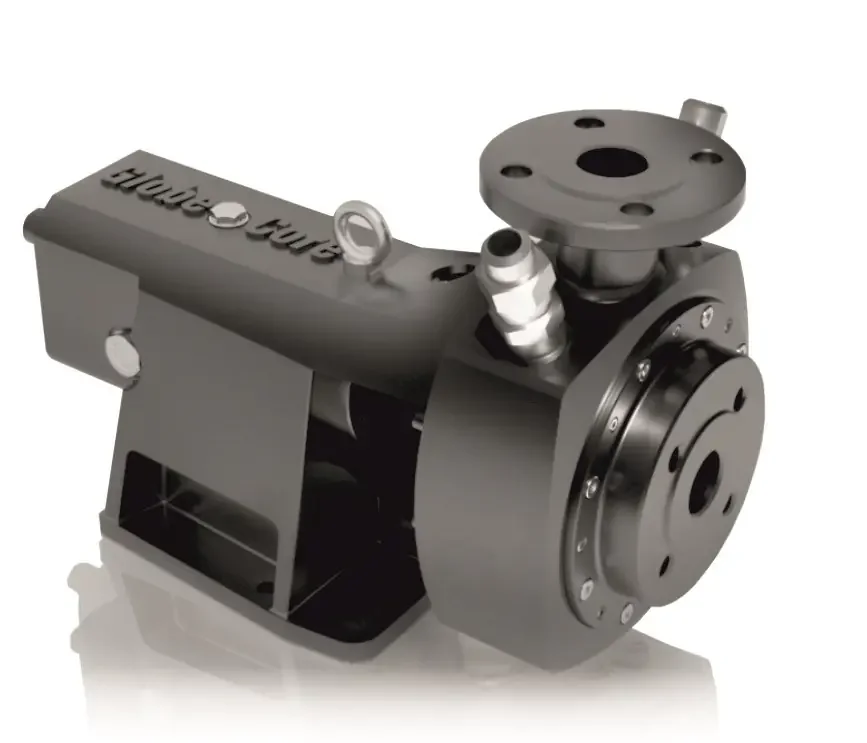

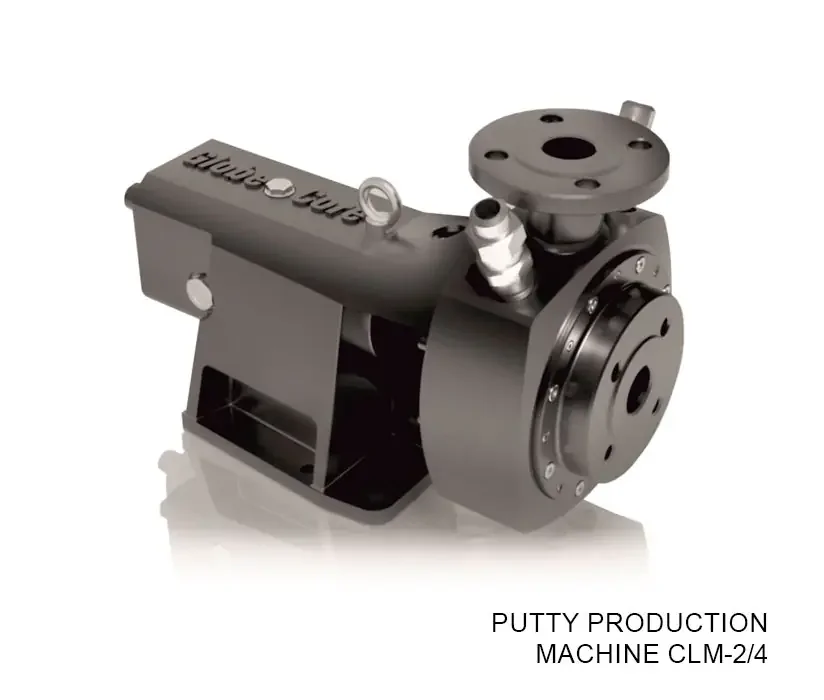

Putty production machine CLM-2/4

Overview

The CLM-2/4 putty production machine from Globecore is made to properly combine the elements required to produce putty of superior quality. The CLM-2/4's primary benefit is its even mixing, which keeps lumps from forming and guarantees a smooth putty texture. The unit creates the ideal consistency because of the advanced mixing system, which facilitates application and enhances surface adhesion. Putty with various qualities, such as greater strength or resistance to moisture, can be made for both exterior and interior applications by adjusting the machine's settings. Even in small production areas, the CLM-2/4 is simple to install due to its modest size and user-friendly design. Operating costs are decreased by the unit's energy efficiency and lack of complicated maintenance requirements. - Unit capacity, m3/h (gpm): 2–4 (8.8… 17.6)* - Operating temperature, °С (°F), not more than: 150 (302) - Maximum pressure, bar (psi), not more than: 10 (145) - Product operating volume, L: flow - Shaft seal type: packing - Rotor/stator tooling type: nozzle - Replaceable knife kit: optional - Knife axial gap (preset), mm: 0.5–1.5 (2×10-2…6×10-2 ) - Knife radial gap, mm (in): 0.25 (10-3) - Knife tip speed, m/s (mph), not more than: 45 (100) - Mill shaft and bearing rotation speed, rpm: 6,350 - Electric motor shaft rotation speed, rpm: 2,900 - Drive power, kW: 11 - Power voltage, V: custom - Dimensions, mm (in), not more than: -length: 900 (35) - Dimensions, mm (in), not more than: – width: 580 (23) - Dimensions, mm (in), not more than: -height: 450 (18) - Weight, not more than, kg (lb): 190 (420) The CLM-2/4 is intended for building and finishing enterprises that need a uniform mixture to prepare walls and other surfaces prior to painting or finishing. By adjusting the machine's settings it can produce putty for both exterior and interior applications with properties such as greater strength or resistance to moisture. The unit's modest size and user-friendly design make it suitable for small production areas, and its energy efficiency and low maintenance reduce operating costs.
