Fico AMS-i

Overview

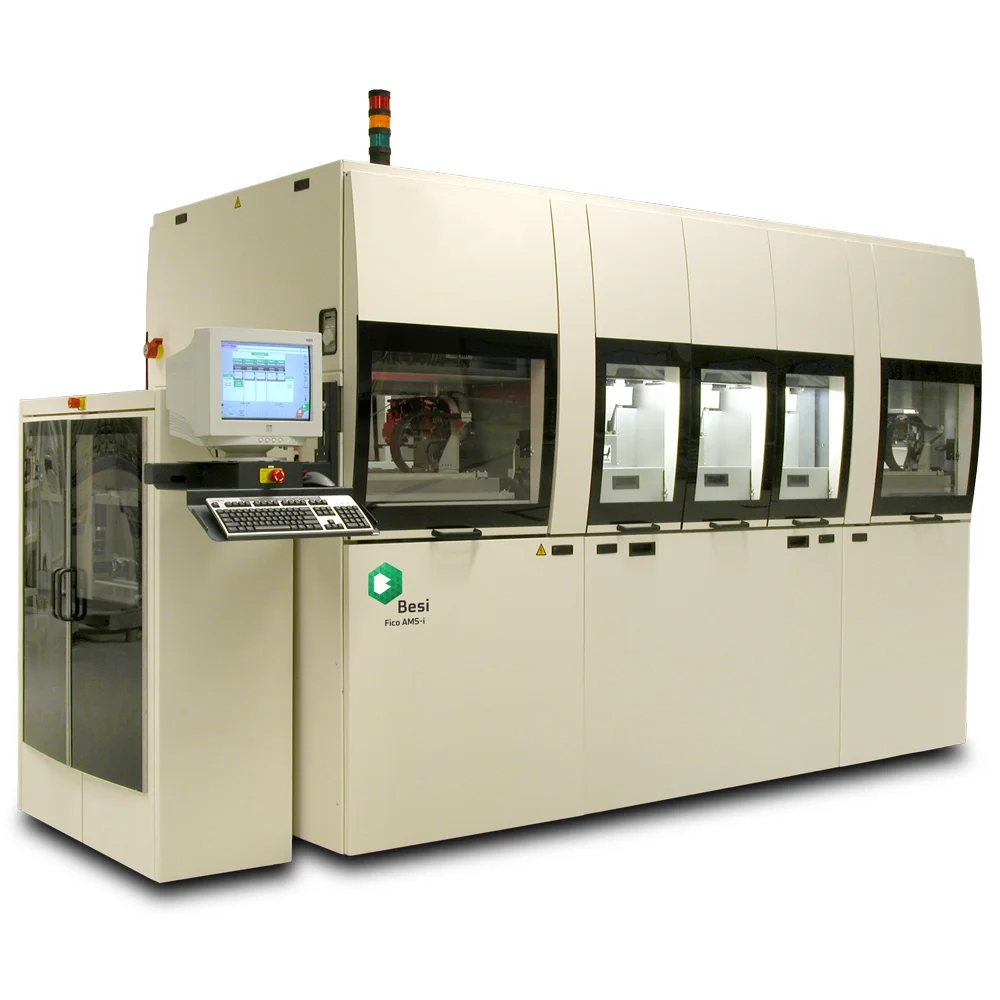

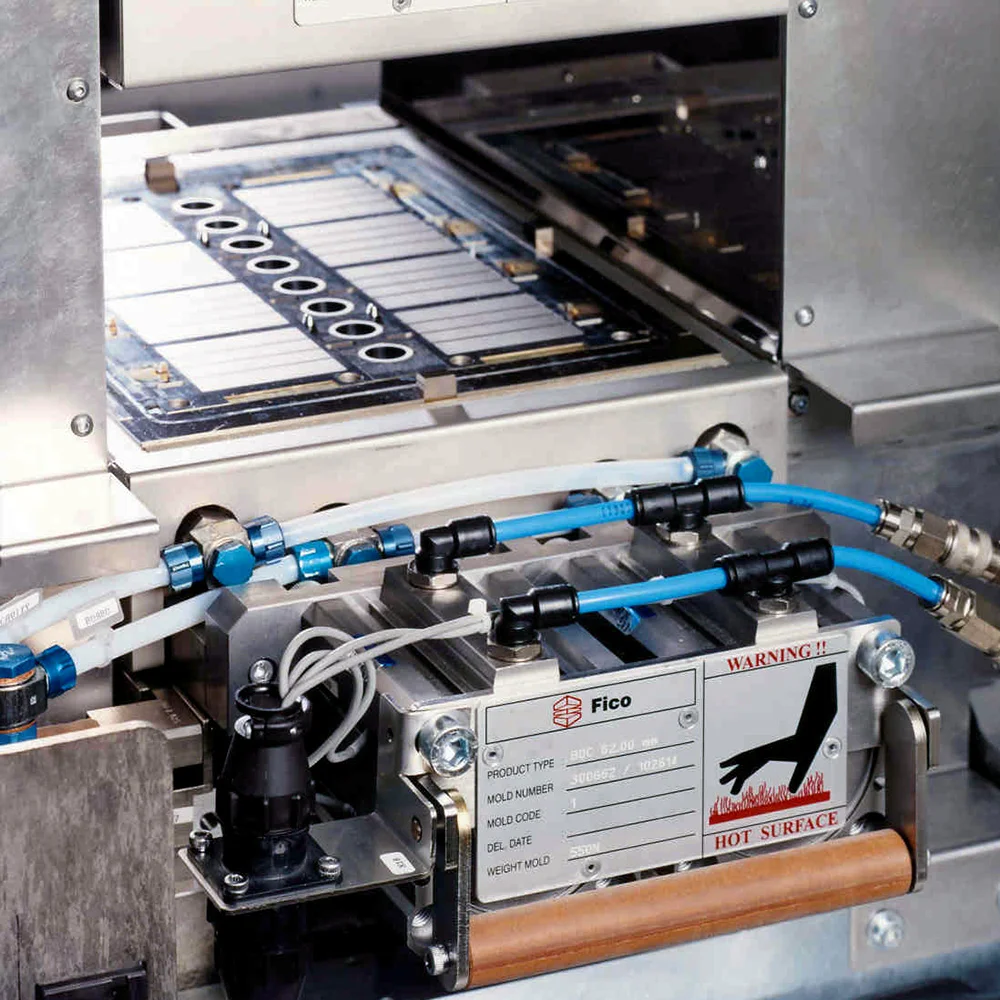

The Fico AMS-i is a fully automatic molding system designed for all current and future package types and for use with any type of pelletized molding compound. It features independent, flexible press operation, high reliability and the shortest machine time in the market to guarantee high output. The machine includes intelligent mold identification that automatically loads process parameters to ensure quick start‑up and ease of operation, and the flexible design allows easy incorporation of specific customer requirements. Key features include: - Product lot tracking - Leadframe orientation check - Remote pellet feed with pellet length check - Capability for clear compound - Unwanted object detection in the press to prevent damage - Remaining cull detection when molded products are unloaded - Large cull bin that can be emptied while the machine continues production - Flexmode operation (cleaning while production continues) - Clean room class 1000 - Machine is CE compliant - User friendly touch screen and machine manuals available on the user interface Machine dimensions: Width: 2 press system: 3,733 mm; 3 press system: 4,173 mm. Depth: 1,759 mm. Height: 2,150 mm. Weight: 2 press system: approx. 4,290 kg; 3 press system: approx. 4,935 kg. Leadframe dimensions: Width: Max. 75 mm; Length: Max. 280 mm. Cassette dimensions: Width: 85 mm; Length: 300 mm; Height: 165 mm; Storage capacity: 800 mm. Supply requirements: Voltage: 208-230-380-400-440-460-480VAC - 3~; Frequency: 50 / 60 Hz; Power rating: 8.5 - 13 kVA; Compressed air: 5 - 10 bar; Average air consumption: 6 m3/h at 6 bar; Factory exhaust: 500 m3/h at 50 Hz. Press and mold properties: Max. clamp force: 900 kN; Max. mold opening: 124 mm; Max. transfer pressure: 120 bar; Pellet diameter: 14 or 14.3 mm; Max. number of plungers: 10; Max. cavity temperature difference: ± 2 °C. Available options include Molding Quality Inspection (MQI) full product quality inspection, product size measurement, incomplete fill check, infeed inspection (identification, orientation, 2D-dot code), anti jump loading, SECS-GEM, anti warpage unit, two step loading, adaptive clamping, cavity and board vacuum, process monitoring with FTPC, bottom leadframe detection, mold surface scanning, double leadframe detection, remaining cull detection degater, adjustable clamp up speed, product quality inspection, single stack and slotted offloading, and automatic leadframe loading during cleaning. The Fico AMS-i is intended for automated molding of package types using pelletized molding compounds. It supports workflows that require intelligent mold identification and automatic loading of process parameters to enable quick start‑up and consistent operation. When equipped with the stated options the system can perform full product quality inspection (MQI), product size measurement, incomplete fill checks and infeed inspection including identification, orientation and 2D‑dot code reading, and it provides product lot tracking, leadframe orientation checks and remaining cull detection during unloading.
