Multimatic® 220 AC/DC w/ Wireless Foot Pedal

Overview

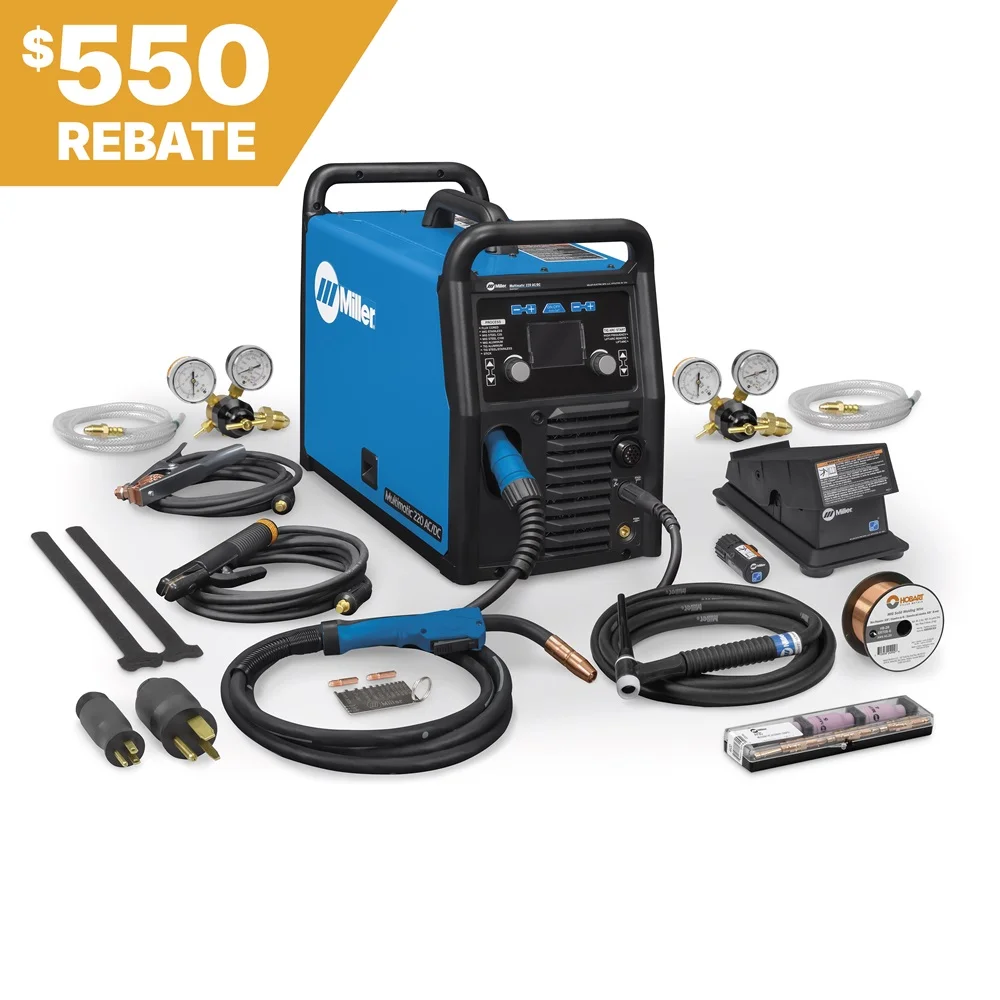

The Multimatic® 220 AC/DC automatically switches welding gas, polarity and welding process while recalling the last MIG or TIG settings and supports Flux Cored (FCAW), MIG (GMAW), Stick (SMAW), TIG AC (GTAW-AC) and TIG DC (GTAW-DC) processes. QuickTech automatically determines polarity, allows the MIG gun and TIG torch to remain connected simultaneously, and switches to the appropriate process when the trigger or foot control is used. Electrical and performance specifications include Amperage 30 A - 230 A, Current Type AC / DC, Max Open Circuit Voltage 46 VDC, Wire Feed Speed 1.5 IPM - 15.2 IPM and 60 IPM - 600 IPM, Welding Mode CC/CV, Input Voltage 110/115/120 V and 220/230/240 V, Input Phase 1-Phase, and Input Hz 50/60 Hz. Net Width 11.25 in, Net Height 17.5 in, Net Length 21.5 in, Net Weight 56 lbs; the unit is generator compatible with full output on engine-driven welders with 10000 Watt (10K) output or higher and includes an MVP multi-voltage plug for 120V and 240V receptacles. Included items supplied with the Multimatic 220 AC/DC are the Wireless Foot Control System (301580), 6.5 ft (2 m) power cord with MVP adapter plugs, 10 ft MDX-100 MIG Welding Gun, 13 ft (4 m) cable electrode holder with 25 mm Dinse-style connector, 12.5 ft (3.8 m) Weldcraft A-150 (WP-17) TIG torch with 25mm Dinse-style connector, 10 ft (3 m) work cable with clamp and 25 mm Dinse-style connector, two Argon and AR/CO2 mix regulator/flow gauges with hoses, a spool of Hobart® .030 in (0.8 mm) solid wire, two contact tips for .030 in (0.8 mm) wire, Quick Select drive roll options for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire and .030/.035 (0.8/0.9 mm) flux cored wire, AK2C TIG torch accessory kit, material thickness gauge #229895, and hook-and-loop cord wraps. Explicitly listed applications for the Multimatic 220 AC/DC are Automotive Welding, Welding Education and Training, and Welding Projects. The product page also lists applicable industries as Farm & Ranch and Racing, Customizing & Restoring.
