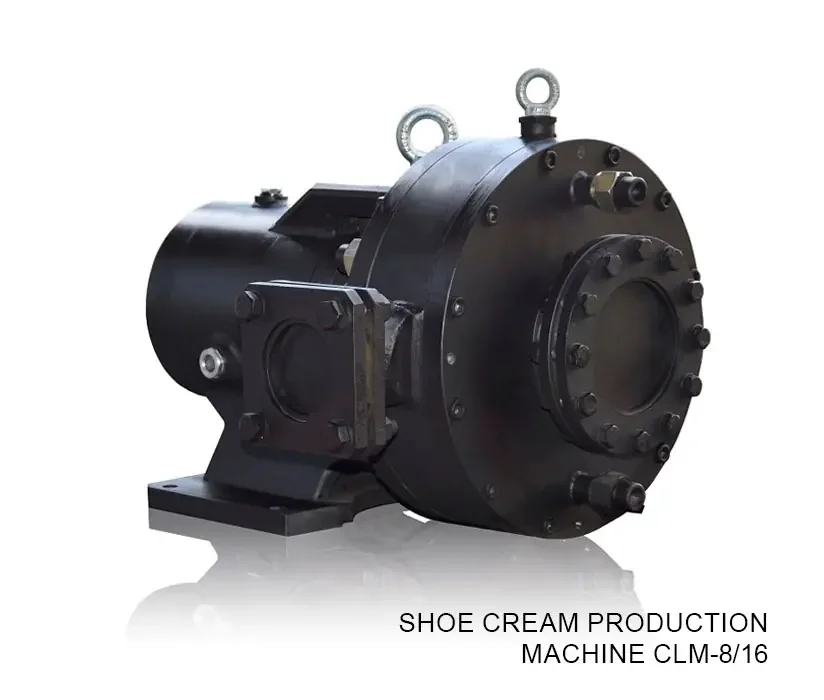

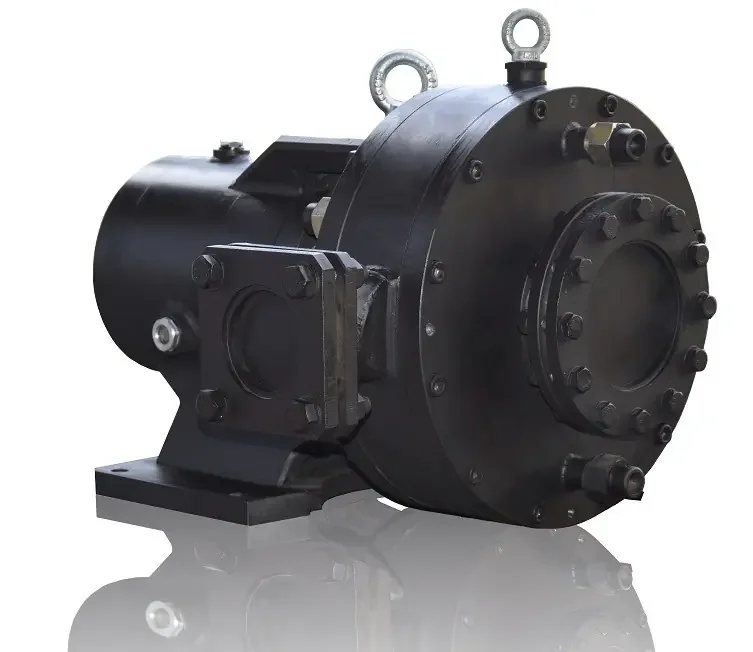

Shoe cream production machine CLM-8/16

Overview

The Globecore CLM-8/16 is a state-of-the-art shoe cream production machine for producing premium polishing and protecting formulas. - Mill capacity, m3/h (gpm): 8… 16 (35… 70)* - Kinematic viscosity of product, mm2/s (St), not more than: 150 (1.5) - Initial size of polymer particles, mm (in), not more than: 5 (0.2) - Maximum operating pressure, MPa (psi): 0.6 (87) - Rated rotation frequency, rpm: 2,950 - Drive motor power, kW: 75 - Parameters of electricity mains, V/Hz: custom - Nominal bore diameter of mill fittings, mm (in) – inlet: 120 (4.7); outlet: 80 (3.1) - Operating temperature, °С (°F), not more than: 180 (356) - Mill shaft seal: packing - Knife gap adjustment type: manual - Knife gap adjustment range, mm (in): 0,2…2 (8·10-3… 8·10-3) - Knife tip speed at 3,000 rpm, m/s (mph), not more than: 47 (105) - Dimensions (not more than), mm (in) – length: 1,690 (67); width: 650 (26); height: 770 (30) - Net weight (not more than), kg (lb): 780 (1,720) * – depending on the product (liquid). The CLM-8/16 is used to produce premium polishing and protecting shoe cream formulas, and it supports water-based, silicone, and wax-based cream formulations. Its complete automation, small size, and easy operation reduce human error, simplify production, and make the machine simple to integrate for businesses of all sizes.
