Sinus - D Series

Overview

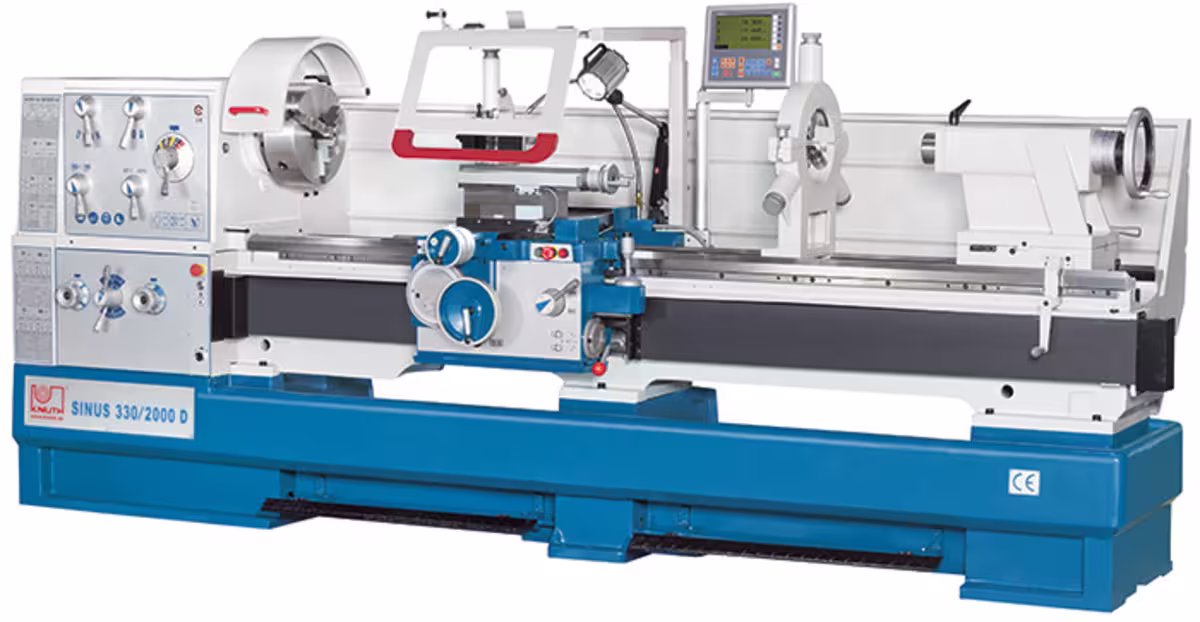

Sinus D is the largest series in the universal lathes segment. The construction follows a classic design and is based on a heavy, one-piece cast machine bed. The frictional connection between the motor and the spindle takes place via a manual multi-disc clutch. Integrated functions include a removable bed bridge and rapid traverse, and the series offers optional solutions for machining long workpieces or large flanges. - Sinus 330/1500 D: Workpiece length (max.): 59 in; Turning diameter over bed: 26 in; Turning-Ø over support: 17 in; Turning diameter without gap bridge: 35 in; Spindle speed: 25 rpm - 1600 rpm; Spindle bore: 4.1 in; Spindle mount: D1-8; Motor rating main drive: 10.1 Hp; Overall dimensions (length x width x height): 127 in x 49 in x 63 in; Weight: 6160 lbs - Sinus 330/2000 D: Workpiece length (max.): 79 in; Turning diameter over bed: 26 in; Turning-Ø over support: 17 in; Turning diameter without gap bridge: 35 in; Spindle speed: 25 rpm - 1600 rpm; Spindle bore: 4.1 in; Spindle mount: D1-8; Motor rating main drive: 10.1 Hp; Overall dimensions (length x width x height): 147 in x 49 in x 63 in; Weight: 6380 lbs - Sinus 330/3000 D: Workpiece length (max.): 118 in; Turning diameter over bed: 26 in; Turning-Ø over support: 17 in; Turning diameter without gap bridge: 35 in; Spindle speed: 25 rpm - 1600 rpm; Spindle bore: 4.1 in; Spindle mount: D1-8; Motor rating main drive: 10.1 Hp; Overall dimensions (length x width x height): 186 in x 49 in x 63 in; Weight: 7260 lbs - Sinus 400/2000 D: Workpiece length (max.): 79 in; Turning diameter over bed: 31 in; Turning-Ø over support: 22 in; Turning diameter without gap bridge: 41 in; Spindle speed: 25 rpm - 1600 rpm; Spindle bore: 4.1 in; Spindle mount: D1-8; Motor rating main drive: 10.1 Hp; Overall dimensions (length x width x height): 148 in x 45 in x 76 in; Weight: 7700 lbs - Sinus 400/3000 D: Workpiece length (max.): 118 in; Turning diameter over bed: 31 in; Turning-Ø over support: 22 in; Turning diameter without gap bridge: 41 in; Spindle speed: 25 rpm - 1600 rpm; Spindle bore: 4.1 in; Spindle mount: D1-8; Motor rating main drive: 10.1 Hp; Overall dimensions (length x width x height): 187 in x 45 in x 76 in; Weight: 8514 lbs - Sinus 400/1500 D: Workpiece length (max.): 59 in; Turning diameter over bed: 31 in; Turning-Ø over support: 22 in; Turning diameter without gap bridge: 41 in; Spindle speed: 25 rpm - 1600 rpm; Spindle bore: 4.1 in; Spindle mount: D1-8; Motor rating main drive: 10.1 Hp; Overall dimensions (length x width x height): 128 in x 45 in x 76 in; Weight: 7084 lbs The series offers optional solutions for machining long workpieces or large flanges. Integrated functions such as the removable bed bridge and rapid traverse are cited as part of those optional solutions.
