High Speed Disperser - 25HP (HSD-25)

Overview

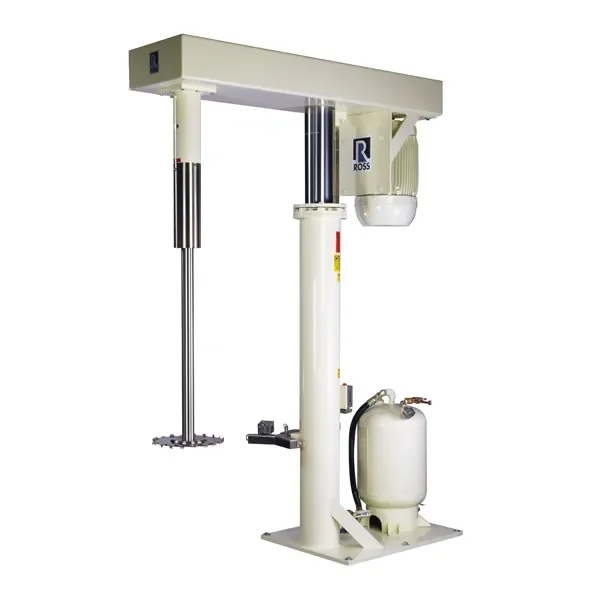

Model HSD-25 (High Speed Disperser - 25HP) is listed at $30,570.00 and is floor mounted. The unit is driven by a 25 HP TEFC 230/460 V, 3 Ph., 60 Hz inverter duty motor and has a shaft speed of 1,200 RPM. It includes one (1) 16" disperser blade that runs at tip speeds up to around 5,000 ft/min; the open disc blade generates vigorous flow and a characteristic vortex for rapid wet-out. The mixing head is hydraulically raised by an air/oil hydraulic lift complete with 100 psig air/oil supply tank, hydraulic lift cylinder and manually operated control valve. Wetted parts are stainless steel type 304, safety limit switches prevent operation while raised or without a mix vessel, the unit includes a clamping device to secure a vessel, and non-stainless exterior surfaces are painted with Ross off-white two-part epoxy coating. - Horsepower: 25 - Shaft RPM: 1,200 - Dimension: Inch | mm - Blade Diameter: 16 | 406 - Overall Length: 72 | 2083 - Overall Width: 28 | 711 - Overall Lowered Height: 82 | 1829 - Lowered Blade Clearance: 8 | 203 - Raised Blade Clearance: 62 | 1575 - Lift Rise: 54 | 1372 - Shaft to Lift Distance: 30 | 762 Ross High Speed Dispersers are used throughout the chemicals, plastics, coatings, inks, paints, adhesives and other industries. Their primary purpose is to incorporate powders into liquid and break down particle agglomerates to produce a fine dispersion; they can handle product viscosities from water-like to up to 50,000 centipoise and enable quick wet-out by creating a vortex into which dry ingredients are added.
