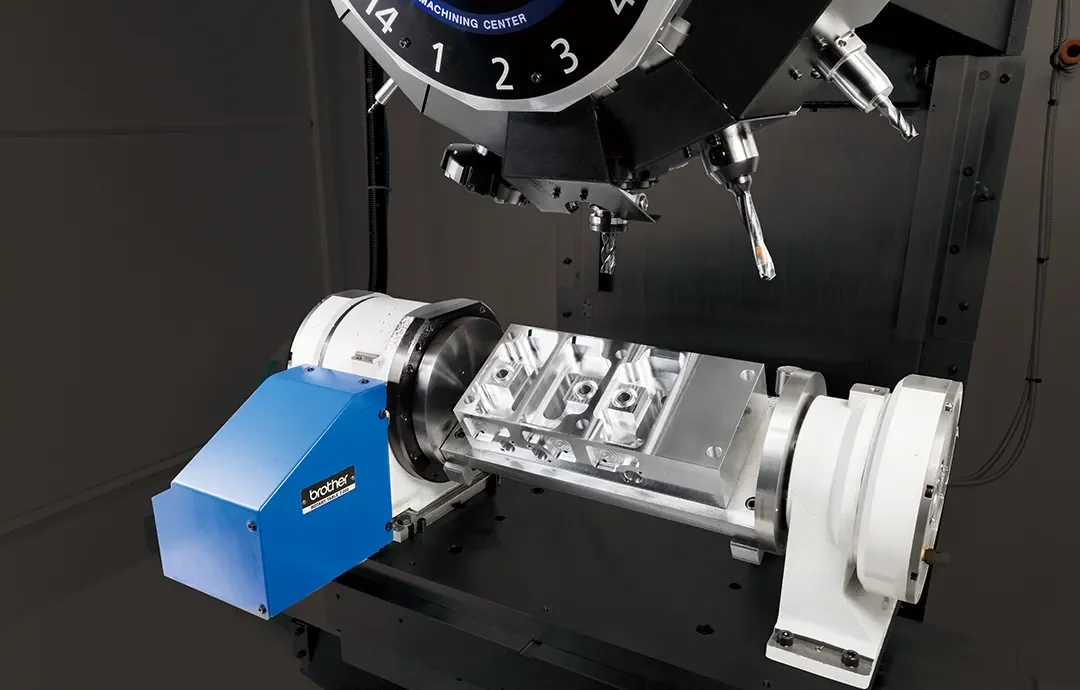

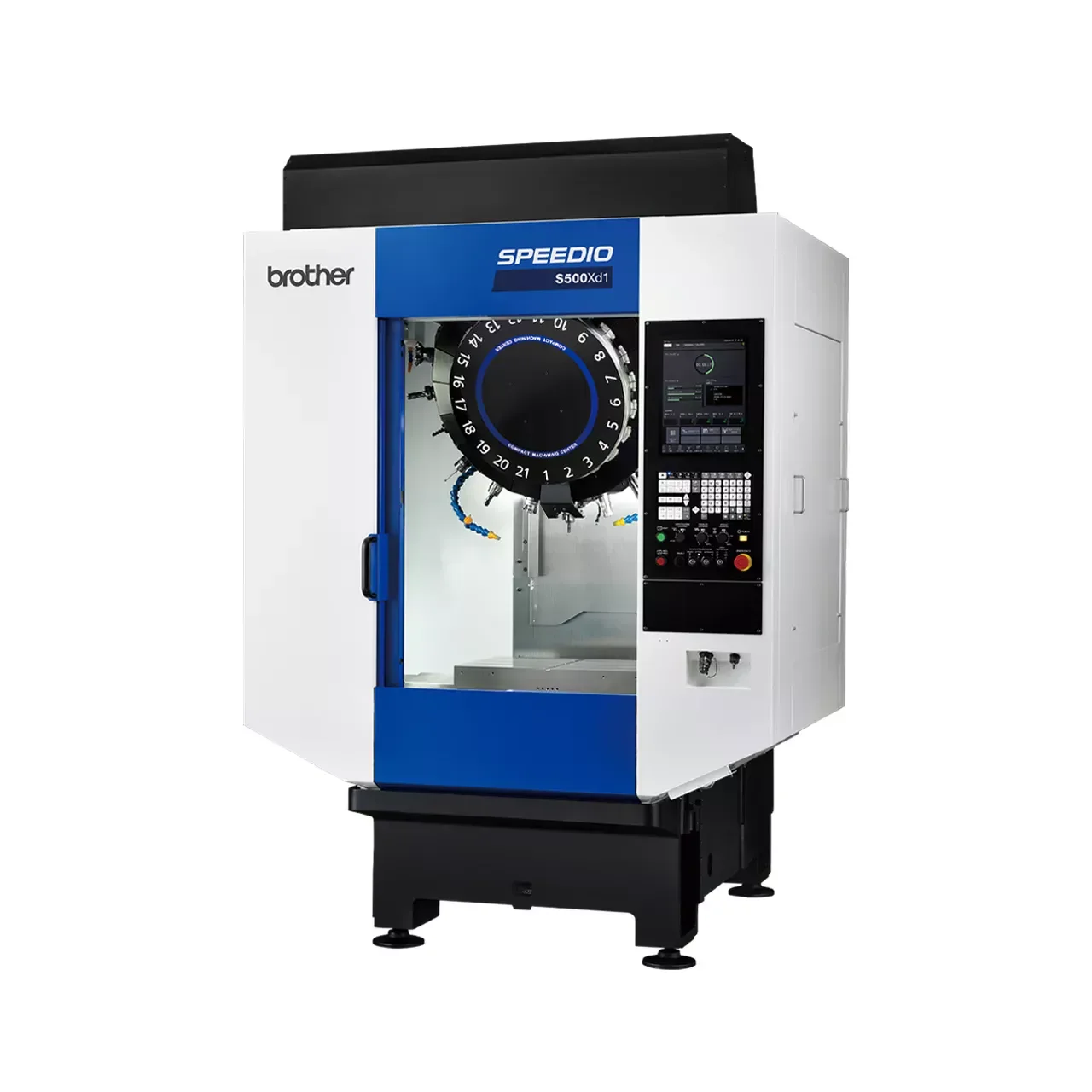

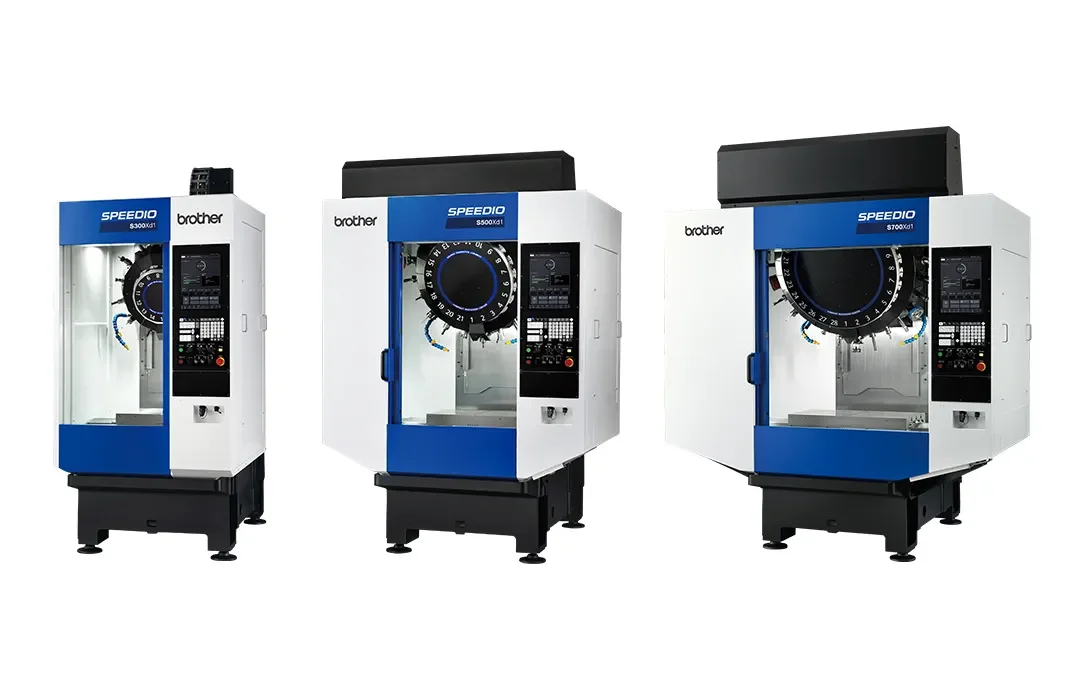

SPEEDIO S500Xd1-5AX

Overview

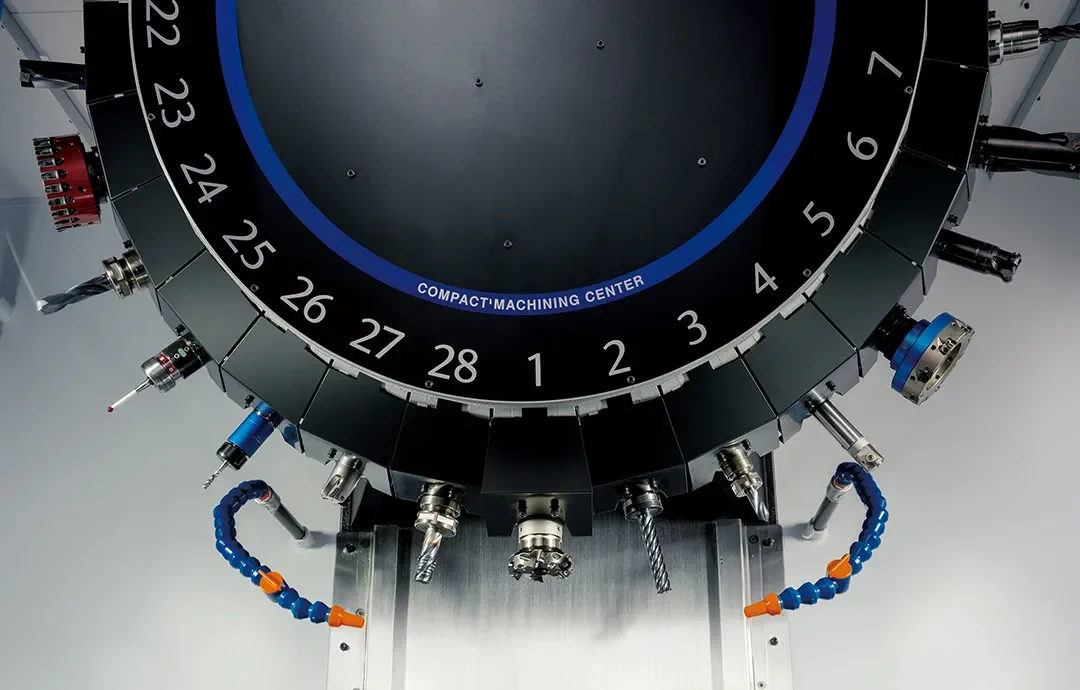

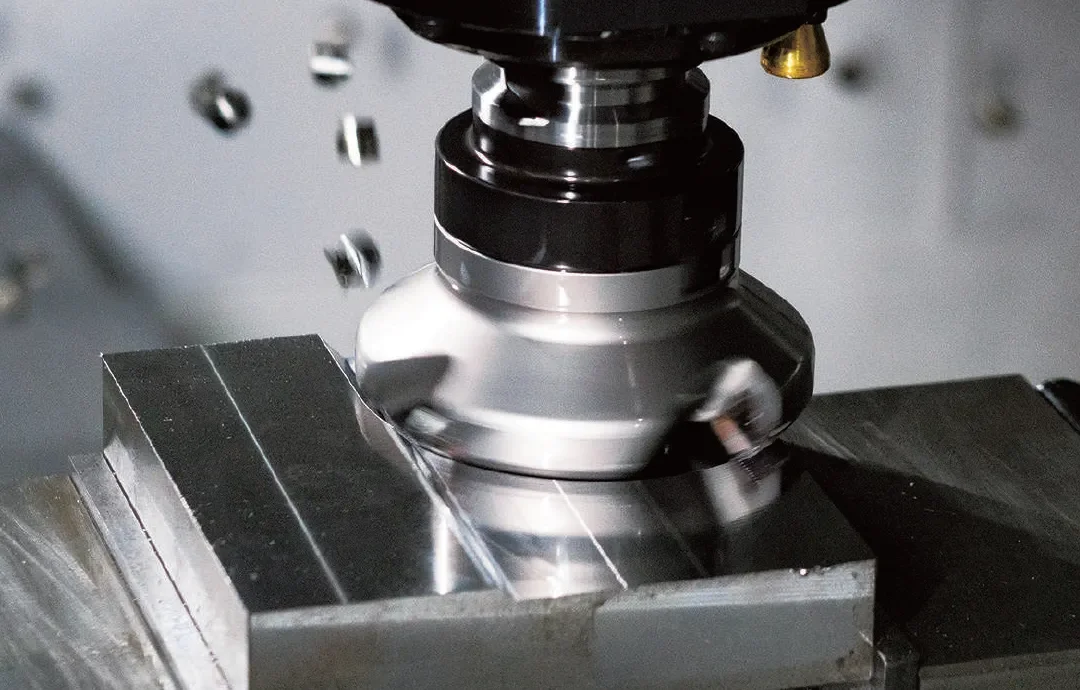

SPEEDIO S500Xd1-5AX is a compact 5 Axis machining center equipped with the new "CNC-D00" controller and a 15-inch LCD touch panel that groups relevant functions and provides apps and a home screen showing workpiece counter and tool life. Travels are X: 500 Y: 400 Z: 300 mm and the table work area size for the S500Xd1 is 600 x 400 mm, with a maximum table loading capacity increased to 400 kg (parameter setting must be changed). Tool storage capacity is 14/21/28 pcs., with max. tool length 160 (6.3) [21tool] / 250 (9.8) [14tool] | 250 (9.8), max. tool diameter Ø110 (4.3), and max. tool weight 3.0 (6.6) [4.0 (8.8) *10]/tool; total tool weight is 25 (55.1) for 14 tools and 35 (77.2) for 21 or 28 tools. Spindle speed specifications include 10,000/ (Optional) 16,000/ (Optional) 27,000/ (Optional) 10,000 high-torque, with a 10,000 min-1 high-torque spec giving Max. torque : 92Nm and Max. output : 26.2kW and the 10,000 min-1 standard spec giving Max. torque : 40Nm and Max. output : 18.9kW; a high-speed spindle spec (optional) is 27,000min-1 and spindle start/stop time is 0.15s or less *. Rapid traverse rate (XYZ axes) is 50 x 50 x 56 m/min and main spindle motor (10 min/continuous) and axis feed motor ratings are provided per specification. Tool change and magazine details: a compact drum type 28-tool magazine is available in addition to 14- and 21-tool magazines, with non-stop ATC delivering Chip - Chip: 1.2 / 1.3 s and Tool - Tool: 0.6 / 0.7 s (14/21 tools / 28 tools) and tools up to 3 kg changed in the shortest time while tools up to 4 kg can be changed with minimal increase in time. Optional features include BT dual contact spindle (BIG-PLUS), Coolant Through Spindle (CTS) selectable at 3 MPa or 7 MPa, and BIG-PLUS compatibility depending on selection. Control, accuracy and utilities: simultaneous 5-axis machining functions include tool center point control (look-ahead 1,000 blocks), submicron command, feature coordinates setting and memory capacity (3 Gbytes) as standard for the 5AX models; accuracy of bidirectional axis positioning (ISO230-2:1988) is 0.006 - 0.020 mm and repeatability (ISO230-2:2014) is less than 0.004 mm. Required floor space is 1,560 x 2,026 mm, machine height is 2,498 mm, weight variants are 2,350 / 2,400 / 2,550 kg, power supply is AC 200 to 230 V ±10%, 3-phase, 50/60Hz ±2%, regular air pressure is 0.4 - 0.6 MPa (recommended value : 0.5MPa) and required flow is 45 L/min (27,000min-1 specifications:115). The product description lists applicability to machining in automobile, semiconductor, precision parts, and IT equipment industries and provides specific example workpieces and materials such as Feeder Frame (Aluminum Alloy), Robot Arm Cover (Aluminum Alloy), Support Bracket (Stainless Steel), EV Inverter Case (Aluminum Alloy), Gear Box Housing (Aluminum Alloy), Electric Water Pump Housing (Aluminum Alloy), Watch Case (Stainless Steel), Bone Plate (Ti-6Al-4V) and Shower Valve (Brass). The machine is presented as supporting process integration and multi-face machining enabled by the newly developed 28-tool magazine and the simultaneous 5-axis machining functions (tool center point control, look-ahead up to 1,000 blocks, submicron command).
