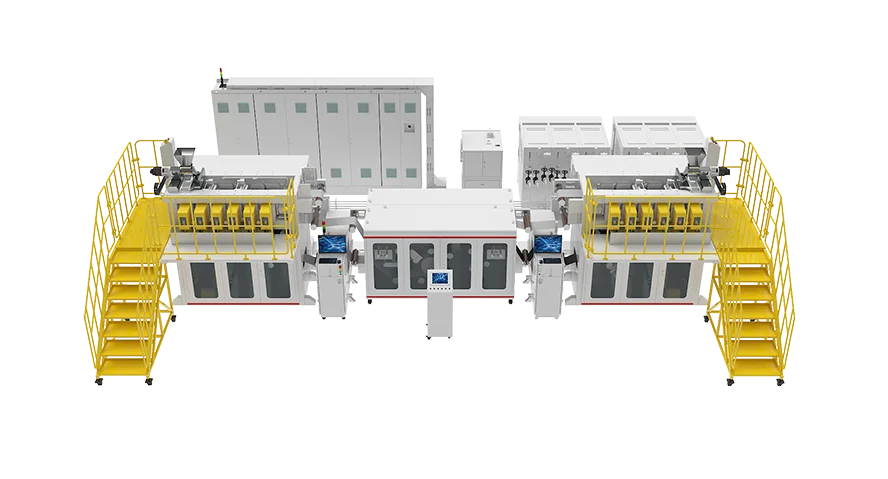

Solid-state Dry Film Formation & Composite Integrated Equipment

Overview

Solid-state Dry Film Formation & Composite Integrated Equipment has a roller surface width of Max.1050mm and a thickness accuracy of ±2μm. The machine incorporates folding back type powder spreading, multi-level temperature control, and roller multistage speed difference control. Series and equipment parameters are listed as: - Series: 350Series | 650Series | 1050Series - Roller Width (mm): 350 | 650 | 1050 - Electrode Width (mm): Max.300 | Max.600 | Max.950 - Calendering Accuracy (μm): ±2 - Machine Speed (m/min): Max.80 The equipment is specially designed for all-solid-state batteries and dry-process electrode technology, enabling stable production under various complex operating conditions, such as different materials, formulations, and processes. The overall process time is ≤ 30 minutes per tank.
